- Specifications
- Standard Inclusions External
- Standard Inclusions Internal
- Standard Inclusions Electrical
- Colour Selections
TareTare weight 1900kg approx.
ATMATM Weight 2800kg
Internal Length5000MM
Overall Length7350MM
Internal Height1980MM

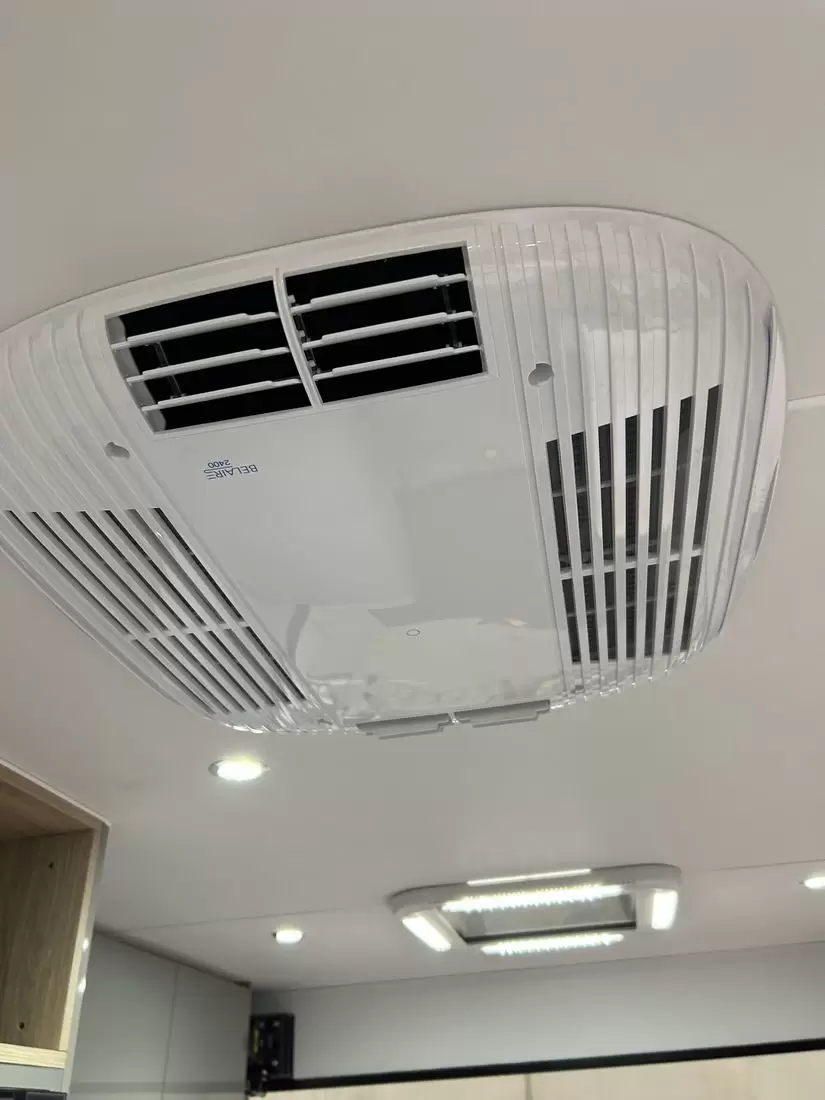

Overall Height2900mm (Roof Top Air Conditioner will add approx 250mm)
Internal Width2250MM
External Width2480MM
- Suspension
Cruisemaster XT independent off road suspension - Chassis
Supa Gal Chassis - Drawbar
1900mm extended drawbar - 6in drawbar and 6in main rail
- Coupling
50mm coupling - Breakaway switch
- Safety Chains
Safety chains - Brake
Handbrake - Jockey Wheel
Jockey wheel - Drop down tail gate

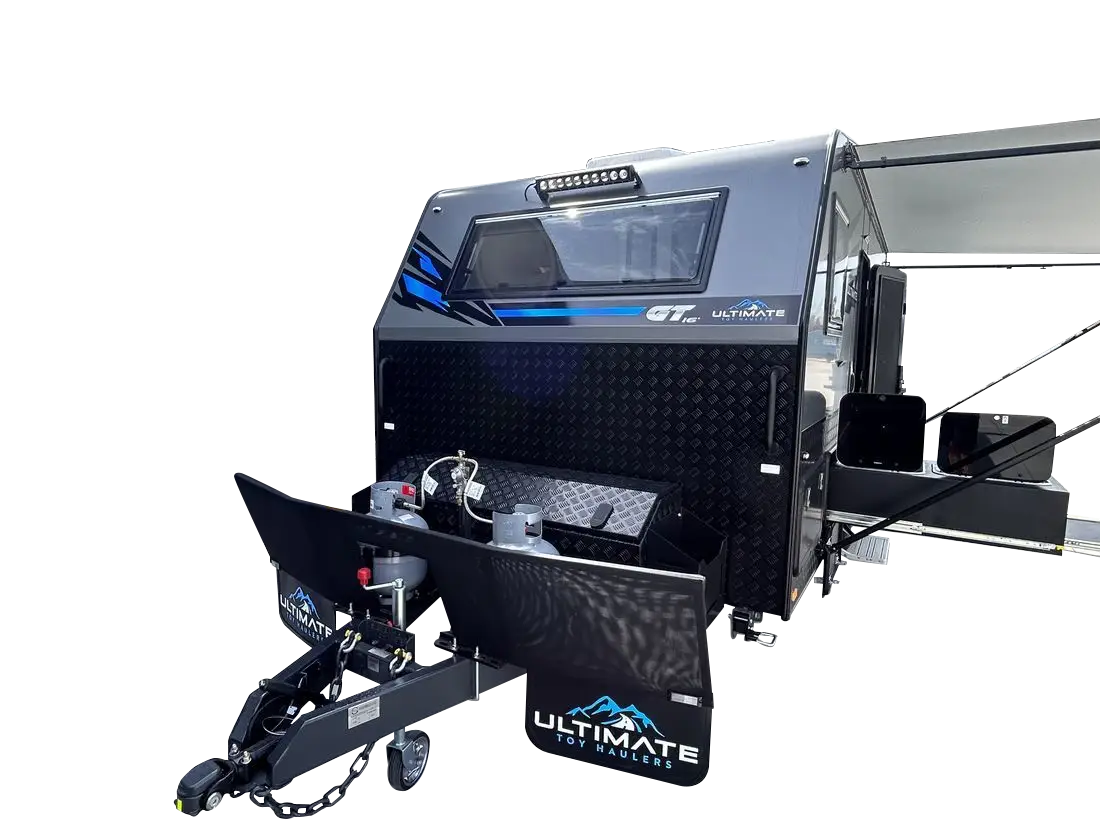

- Toolbox with 2 x Jerrycan holders (size
1450mm x 550mm x 500mm) - Gas Regulator
Gas connection including gas compliance certificate - Electrical compliance certificate
- Breaksafe
12in electric brakes with breakaway system - Frame
Robust Aluminium box frame - Cladding
Premium 3mm Aluminium composite cladding - Kitchen External

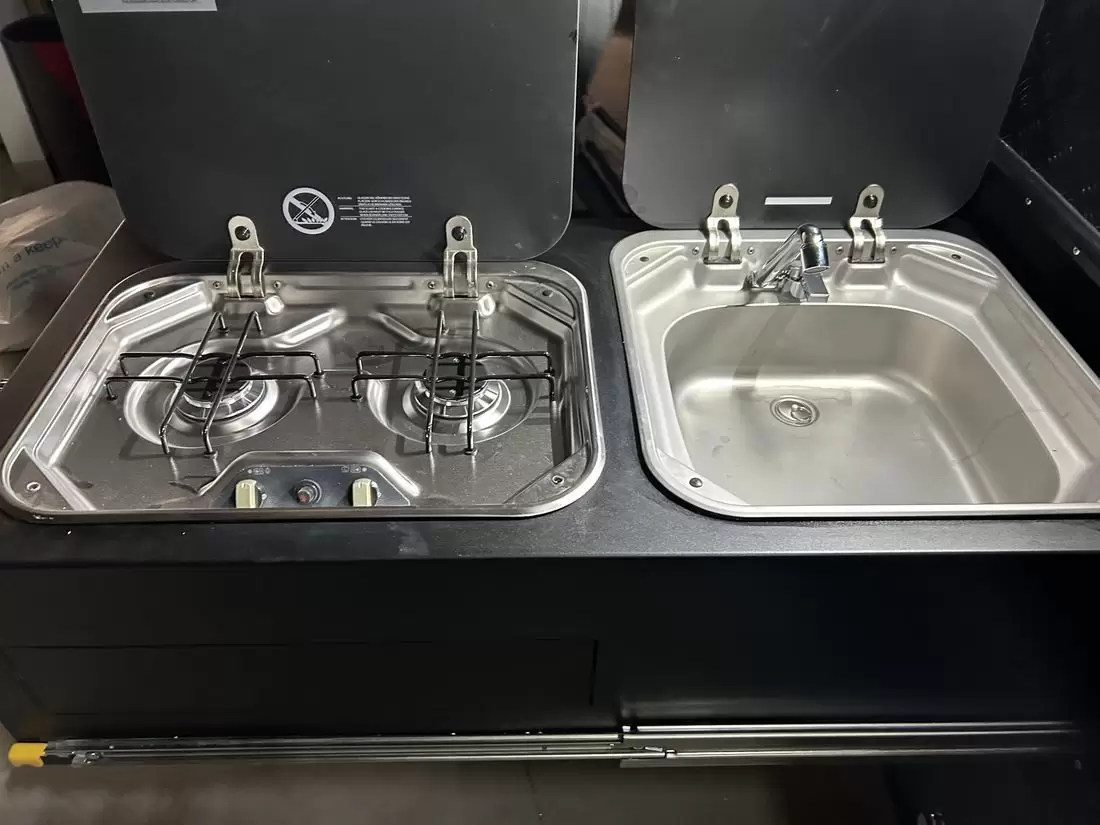

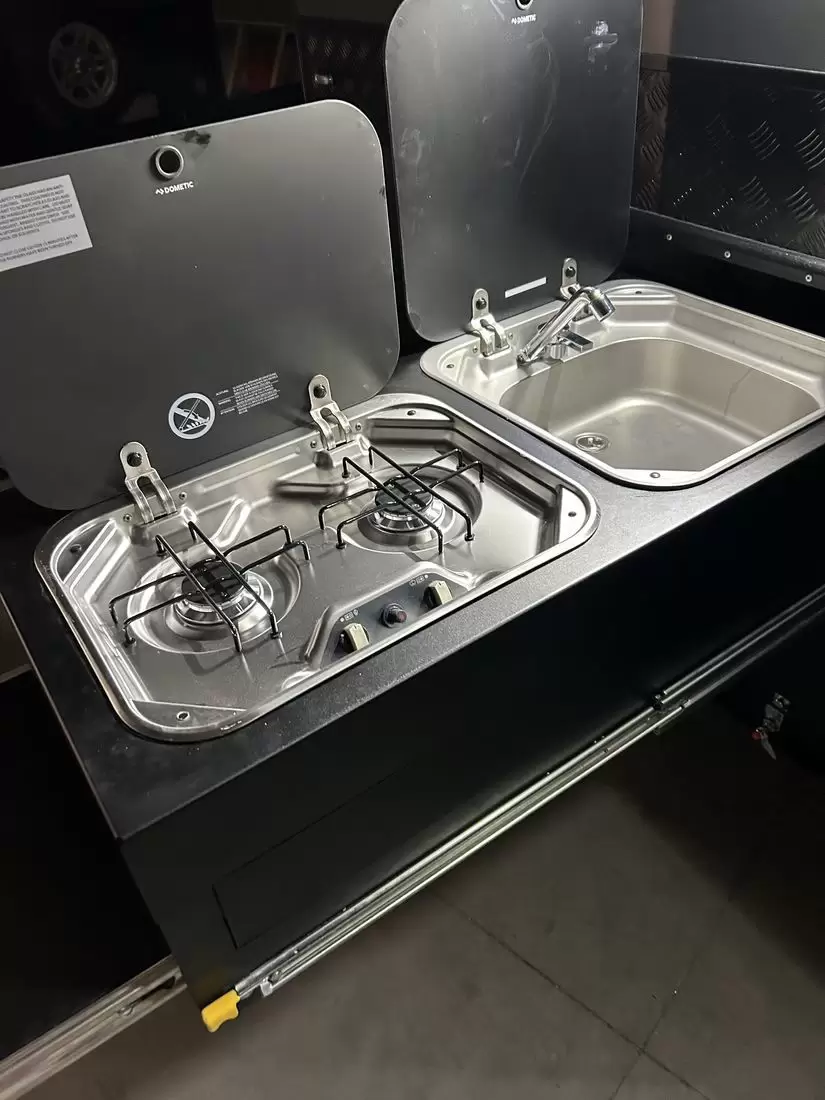

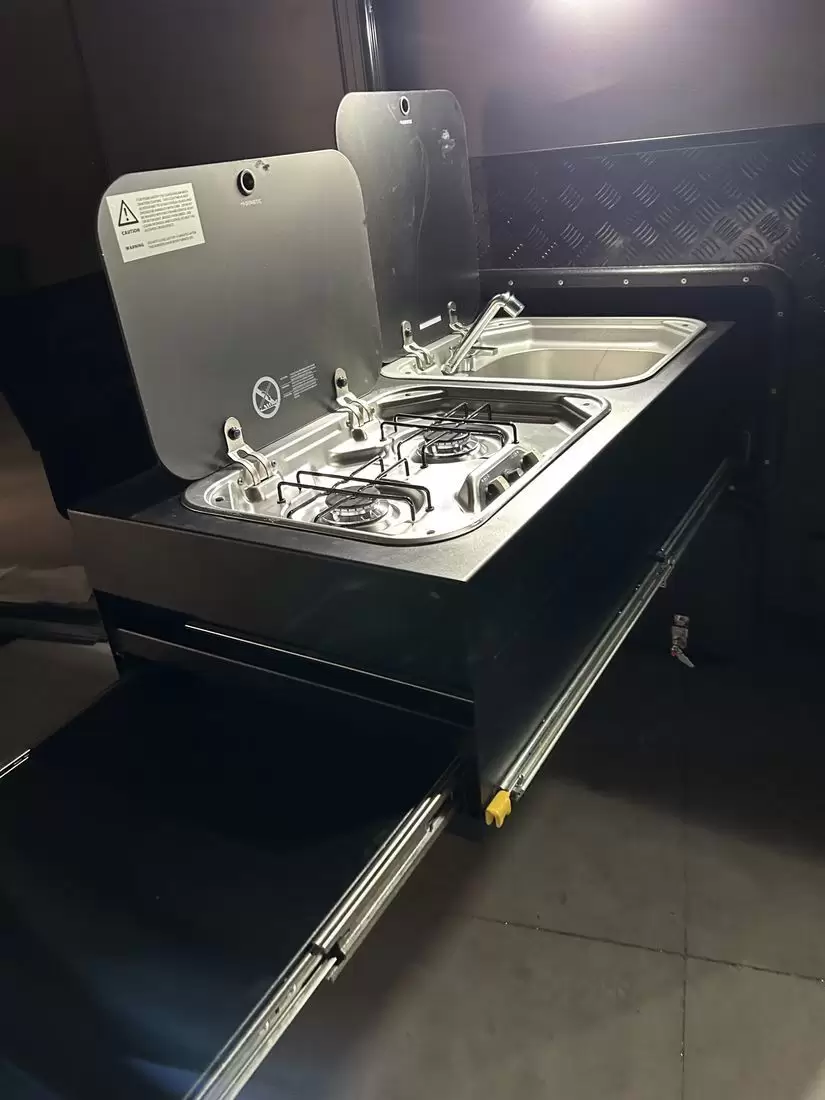

1 x slide out Kitchen with built in sink and two burner stove, slide out table and cutlery drawer - Drop Legs
4 x adjustable stabiliser legs - Picnic Table
1 x external picnic table - Awning
Aussie Traveller 14ft awning - Access Doors

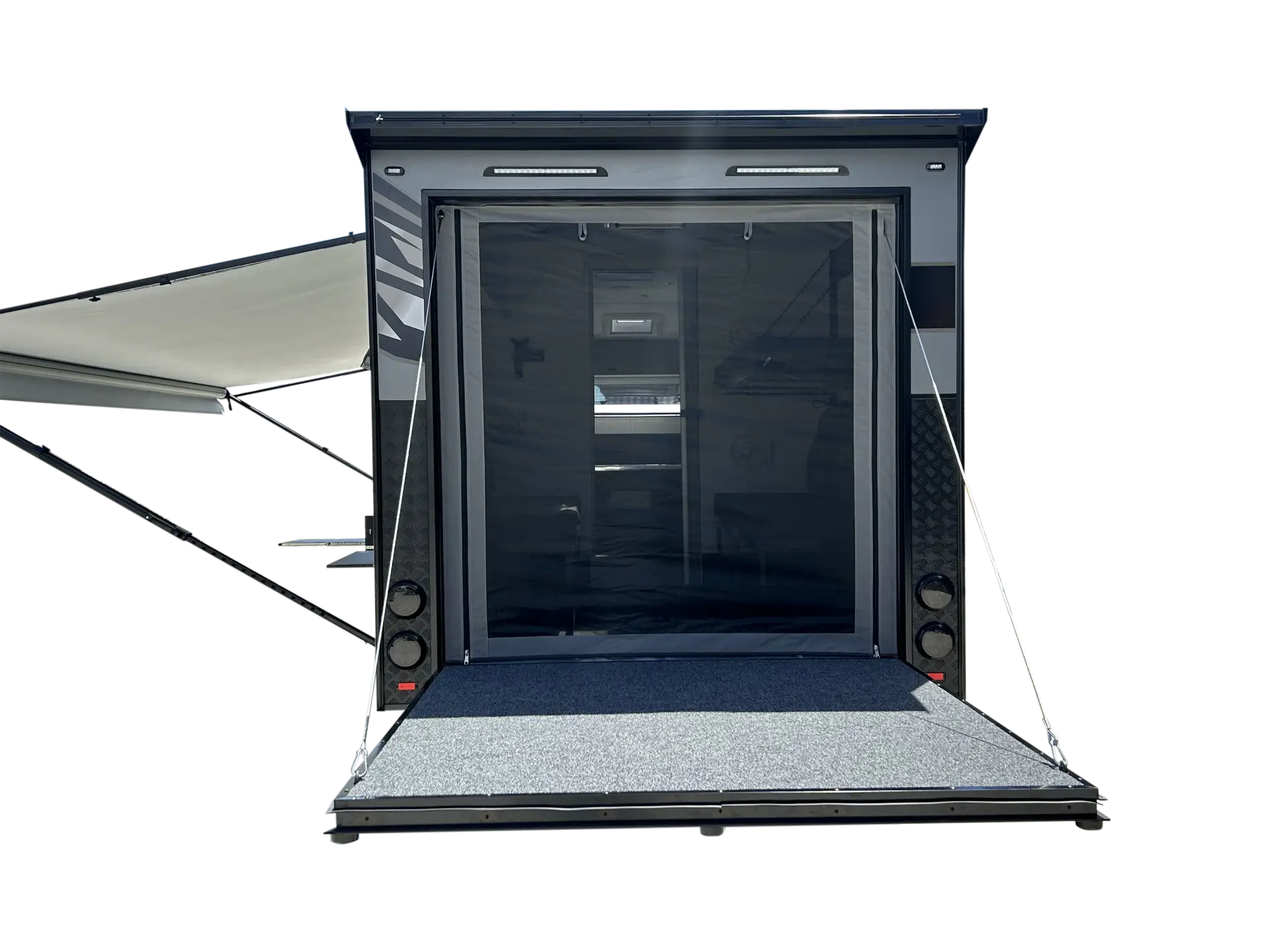

Rear door overhang wing with roof trims - Water Tanks
1x 95 litre water tank - City Water bypass system
- Tunnel Boot
1 x full length tunnel boot - Front drawbar tap

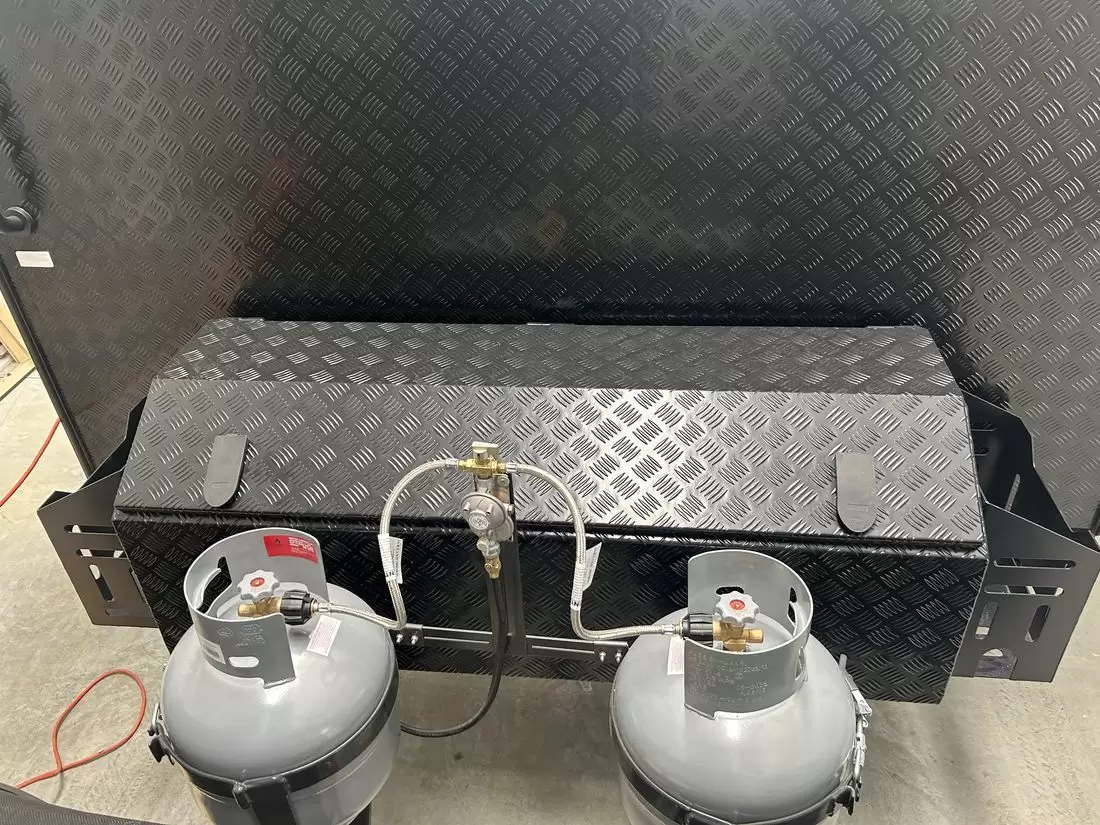

- Gas Bottle
2 x 9kg gas bottles - Rear Work Light
2 x rear loading lights and 2 x side awning lights - 12v electric rear door winch
- Checker Plate
Checker plate lower panels and wheel spats - Rims Wheels Tyres
265 x 75 x 16 offroad tyres - Charcoal marine carpet on rear door
- Decals
Premium logos on external - Cabinetry Cnc
Lightweight premium cabinetry- Premium NX decor - Stereo
Bluetooth stereo with 4 x speakers (2 x internal speakers, 2 external speakers)
- Main Bed

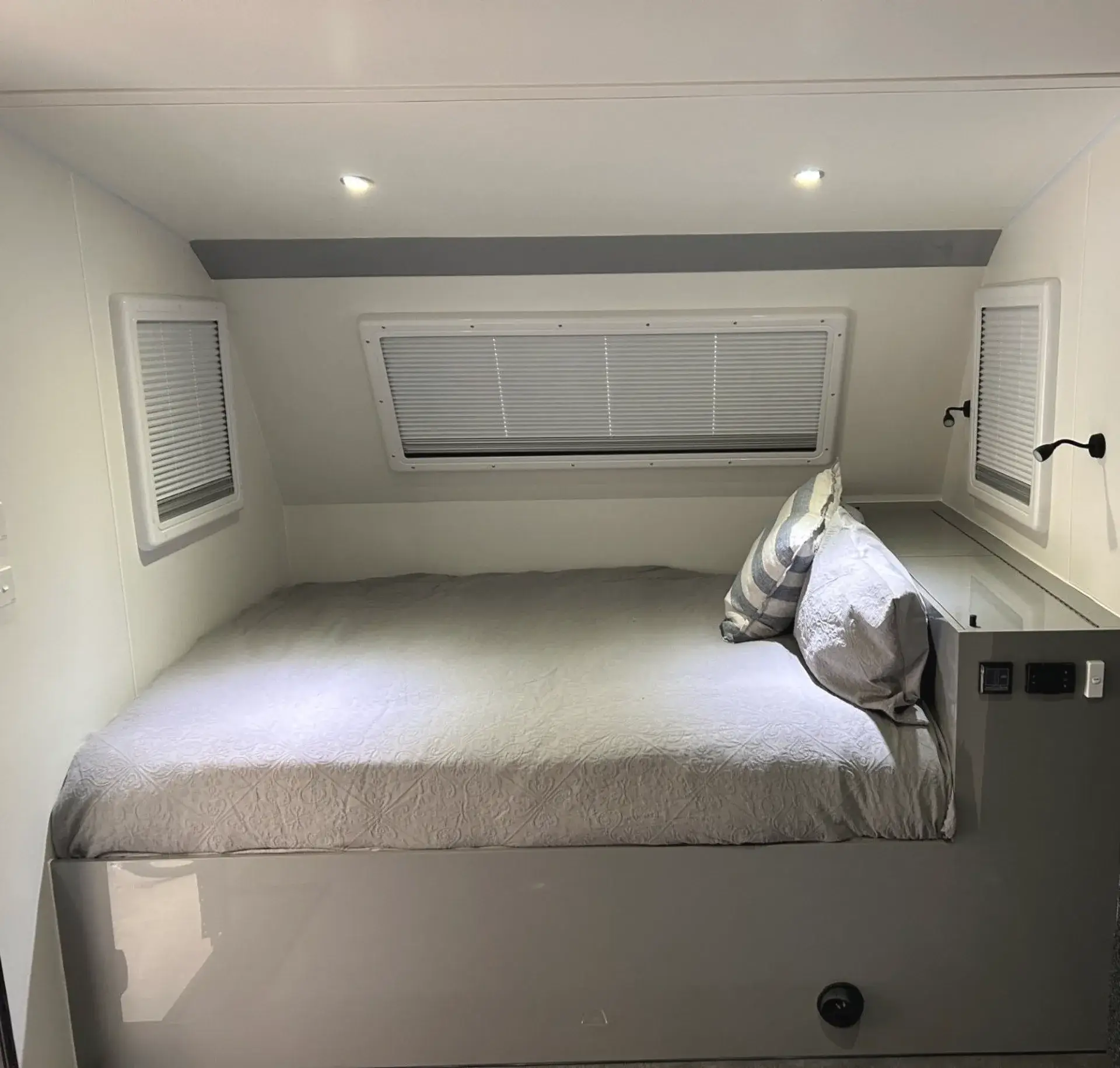

1 x pocket spring Queen sized bed - Bed Converter

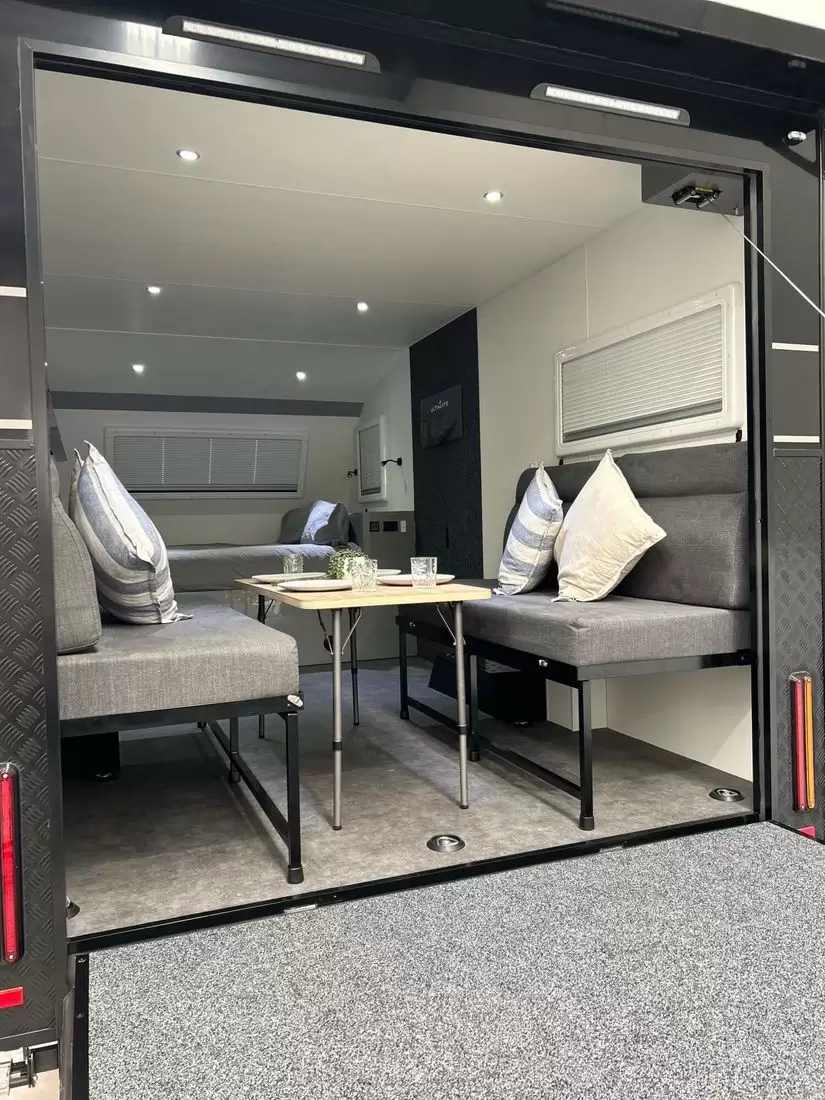

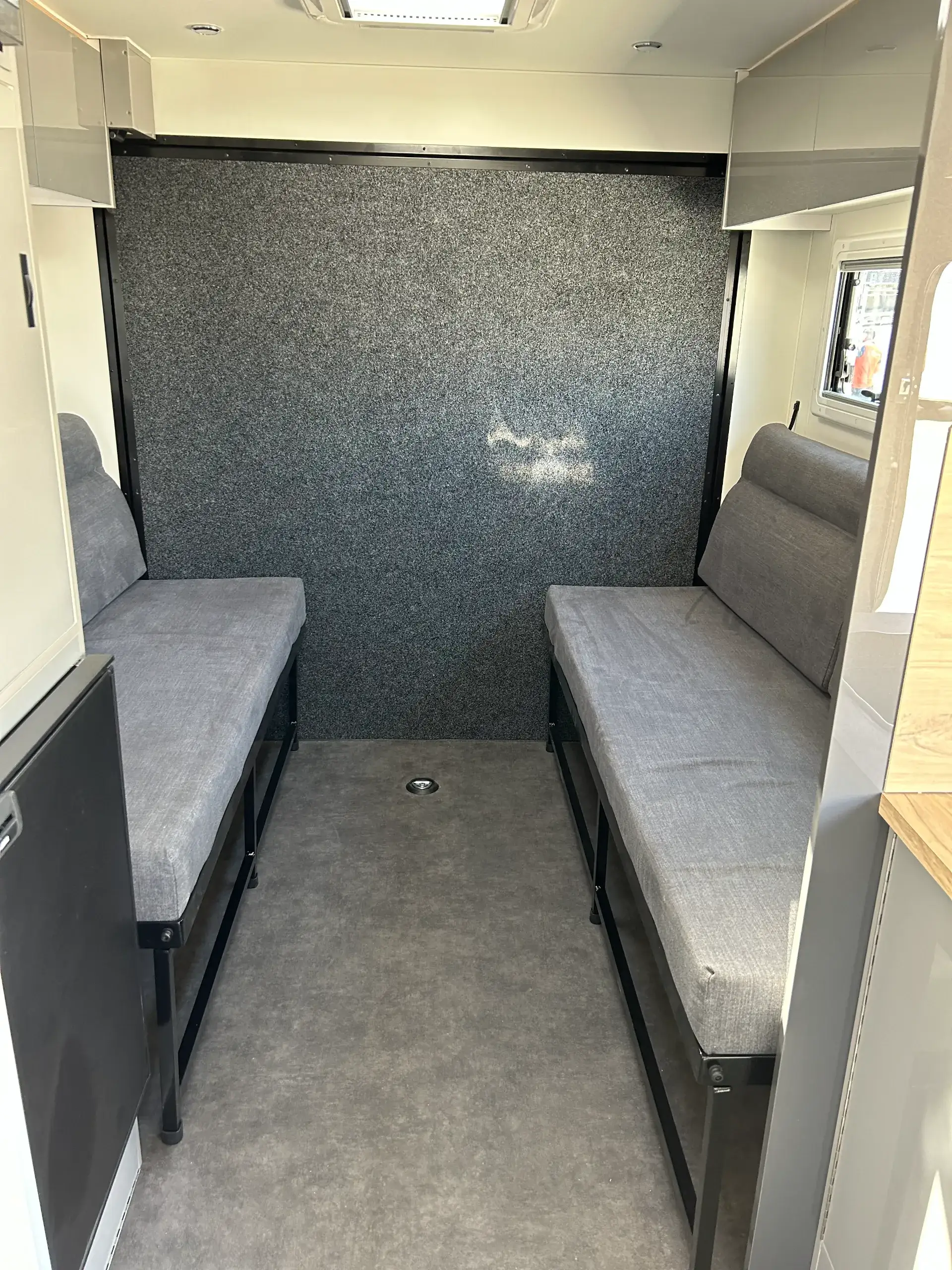

2 x fold up beds/ dining area (1 x 1900mm x 750mm, 1 x 1600mm x 750mm) - Mattress
150mm thick mattress on rear beds with couch back rests - Fridge
12v 175 litre Sphere compressor fridge/ freezer - Windows
4 x Eurovision 2 double glazed windows (slimline look) with flyscreens and blinds on all internal windows - Roof Hatch

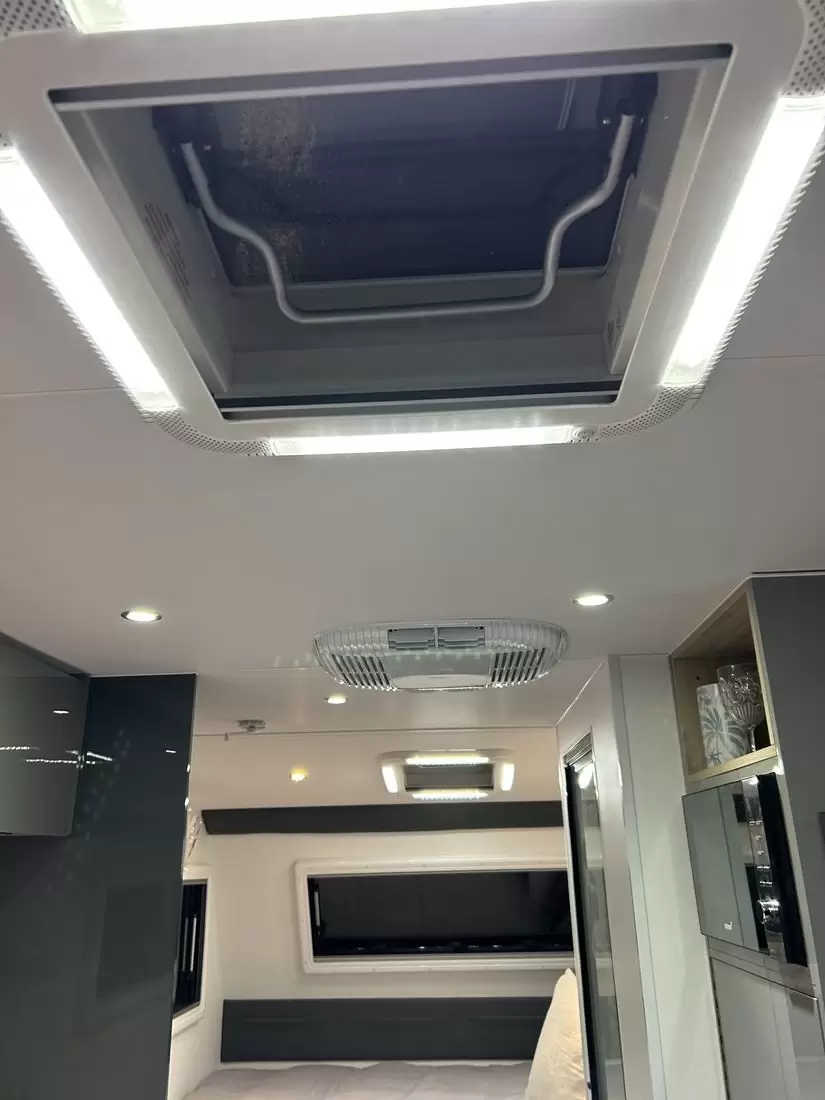

1 x opening roof hatch with blinds/ flyscreen and LED lights, 1 x shower hatch with flyscreen and LED lights - Shower and Toilet

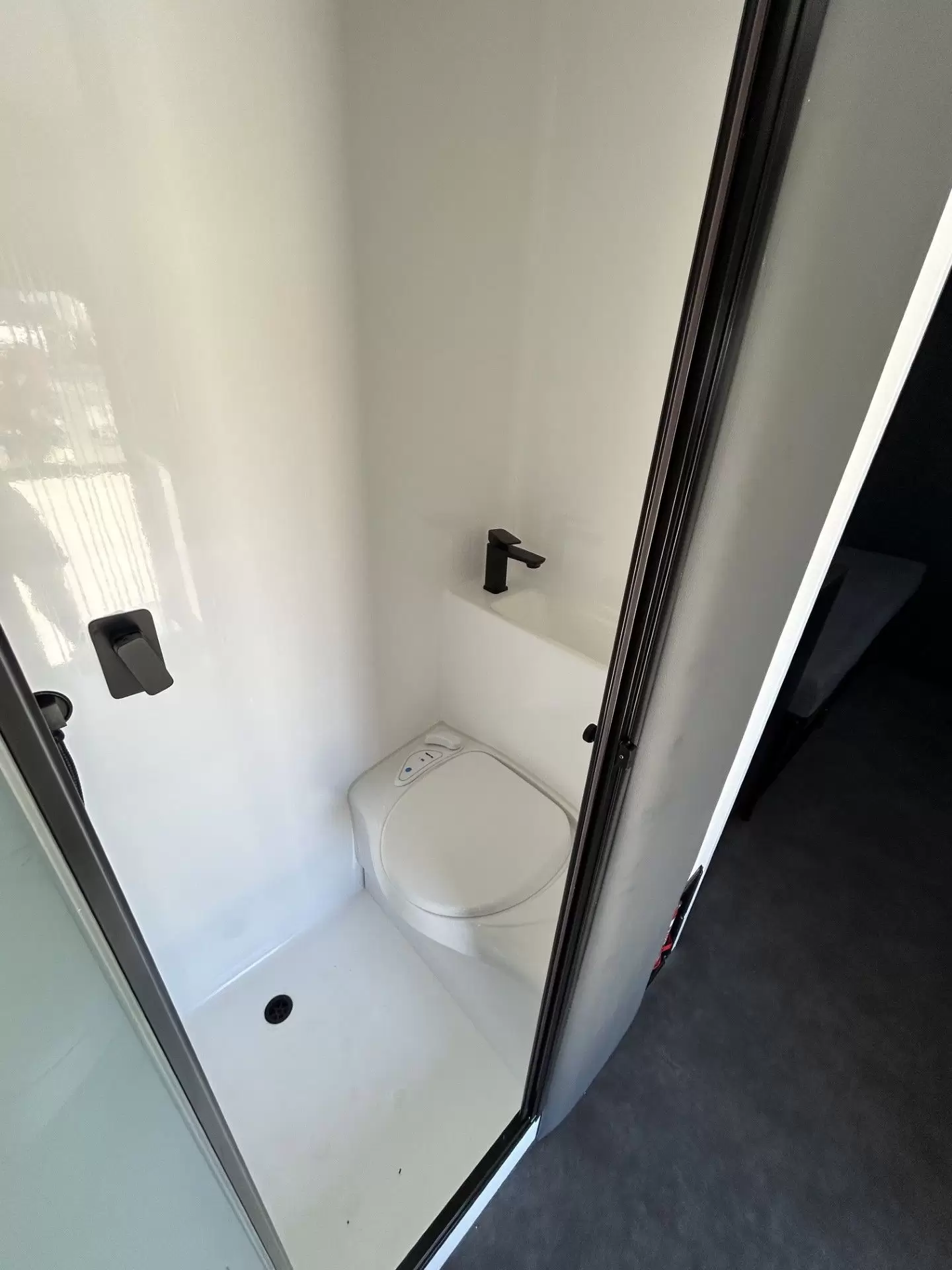

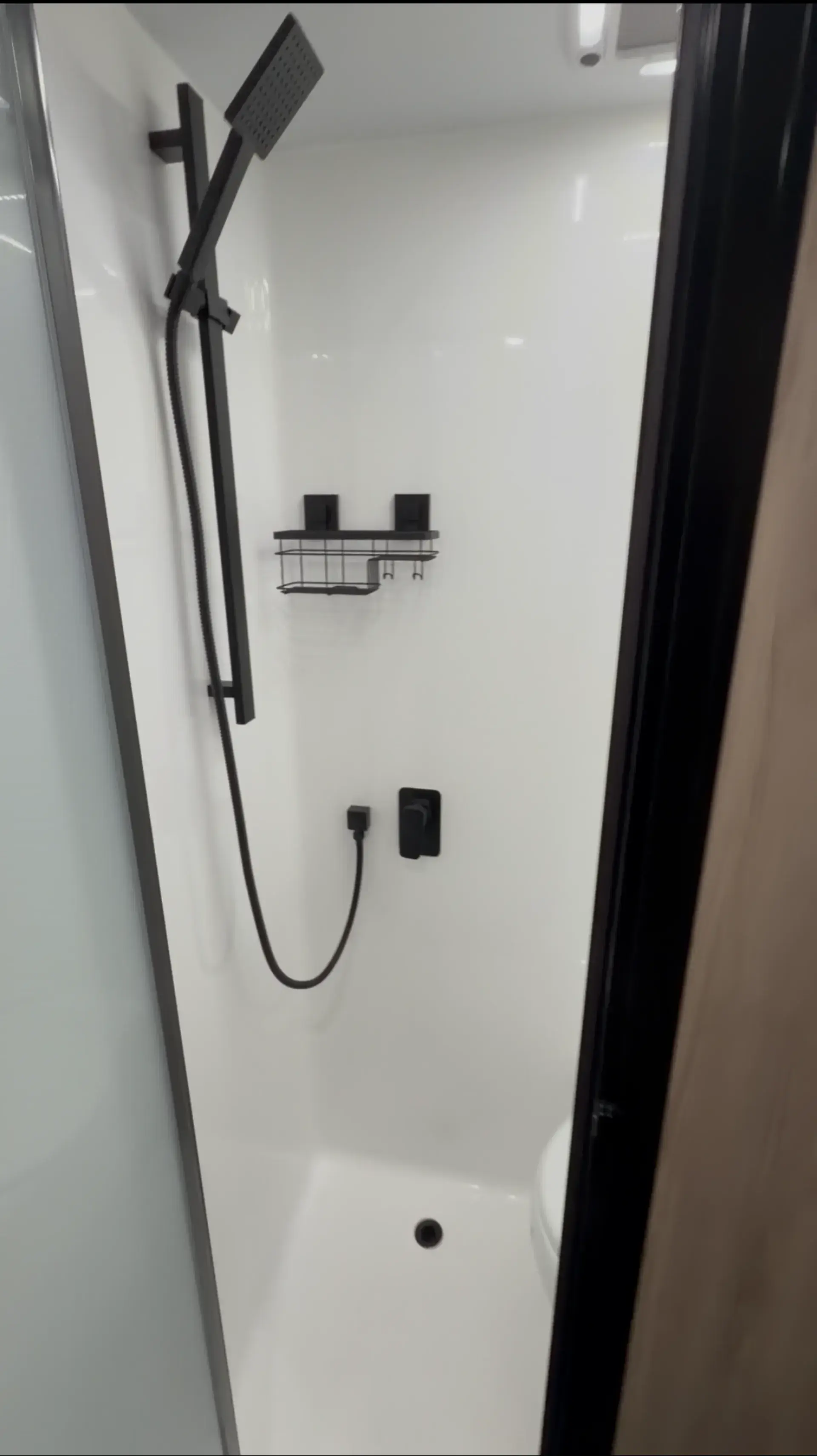

Moulded fiberglass shower, Thetford Cassette toilet and hand basin in ensuite - Premium Shower Accessories
Premium ‘Black Pack’ shower accessories including 2 x mixer tap, shower rail and shower door with travel lock - Entry Security Door
Triple lock entrance/ security door with flyscreen and blind - TV

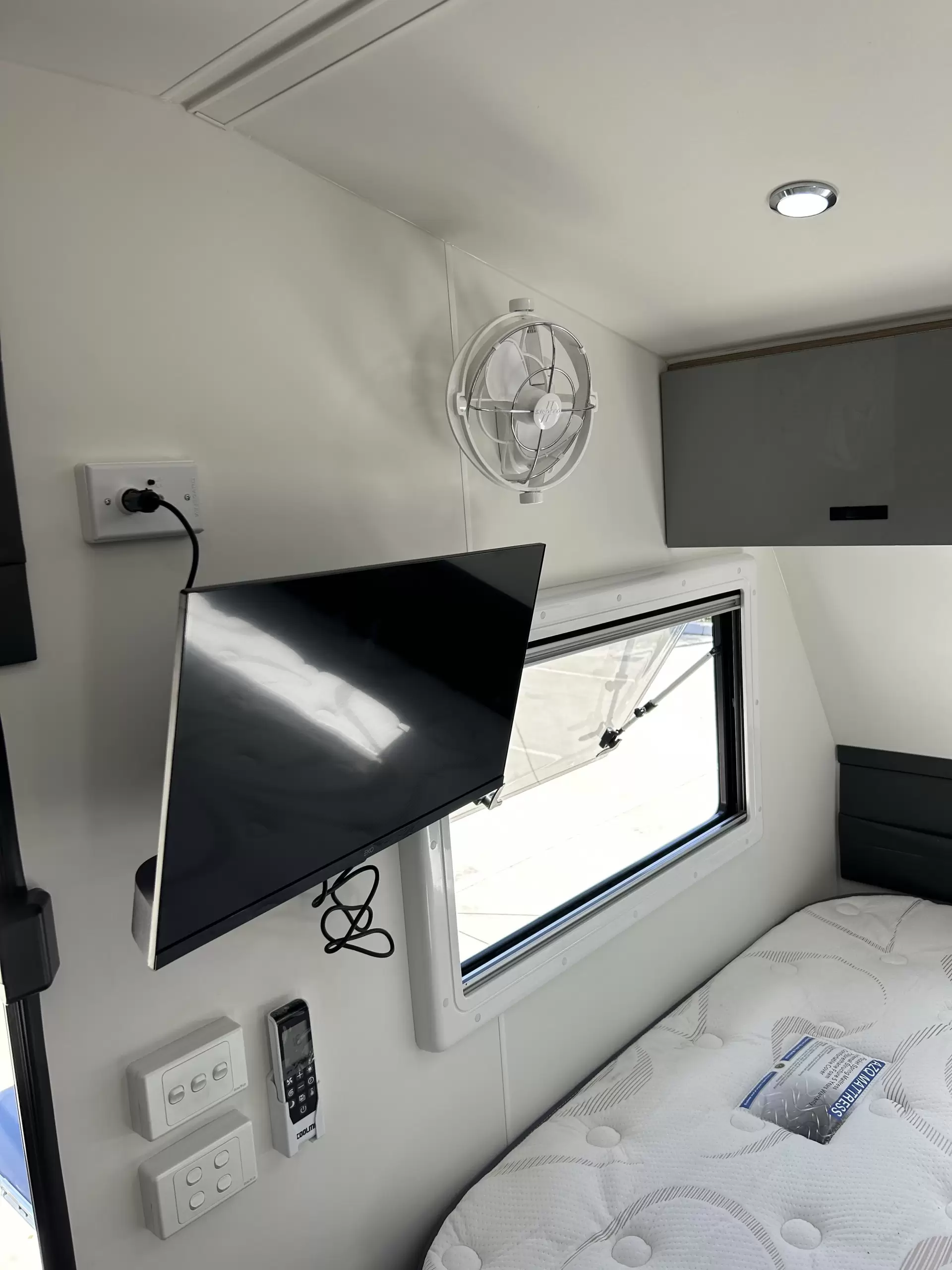

1 x TV mount and 1 x 12v 24in digital TV - Cupboards Storage
Locks on all cupboard doors and overheads - Hinges
Piano hinges on all overheads with gas struts. - Soft Close Drawers
Soft close drawers/doors - Power Points Internal
3 x internal 240 volt power points, 5 x total USB outlets - Water Tank Gauge
Water tank gauge - Kitchen cupboards
2 x Kitchen cupboards (in addition to overhead cupboards) - Hot Water System
Fogatti Instantaneous Hot Water Unit - Tie Down Points

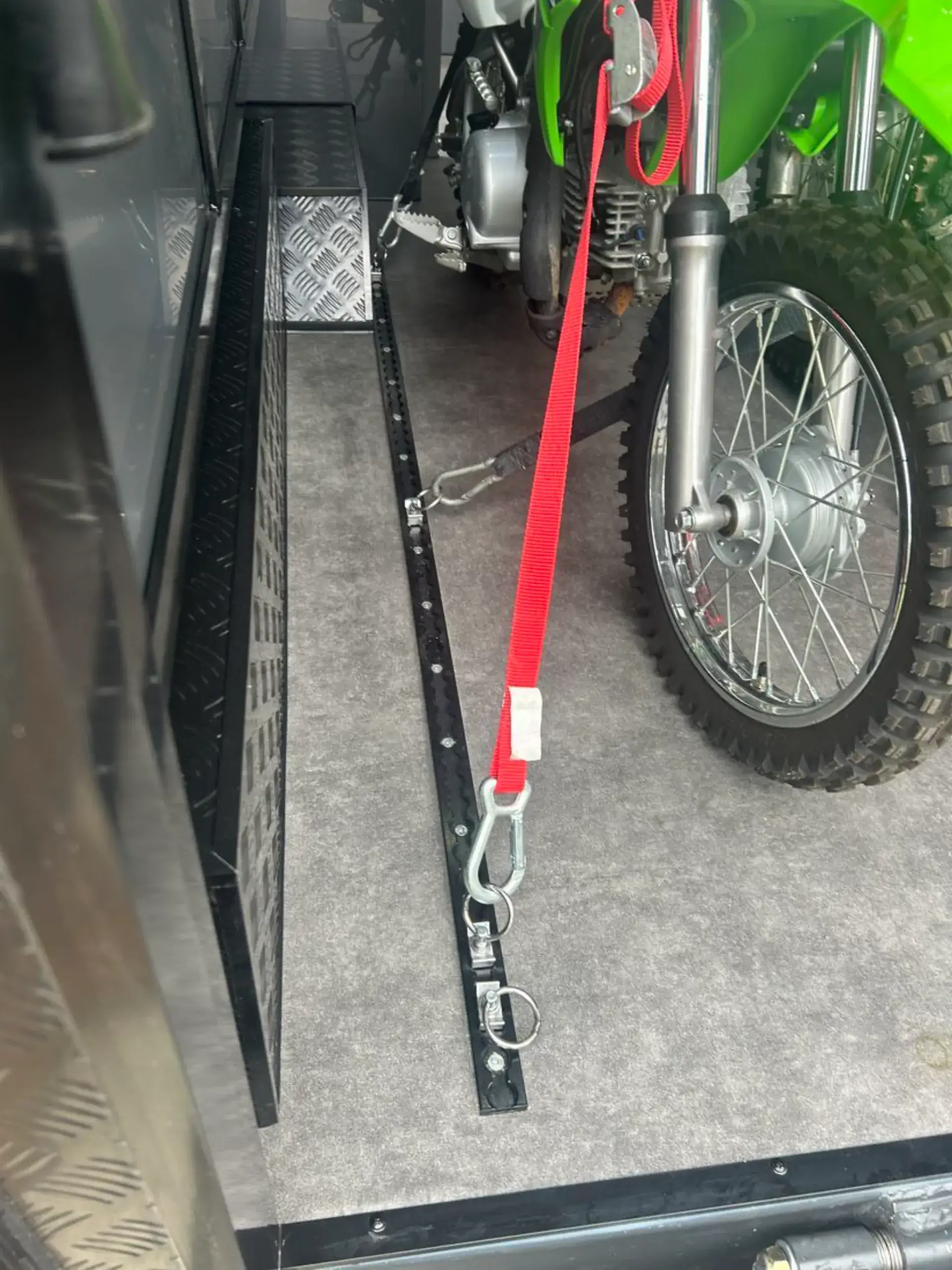

3 x tie down points - 12v rear door winch
- Kitchen Internal

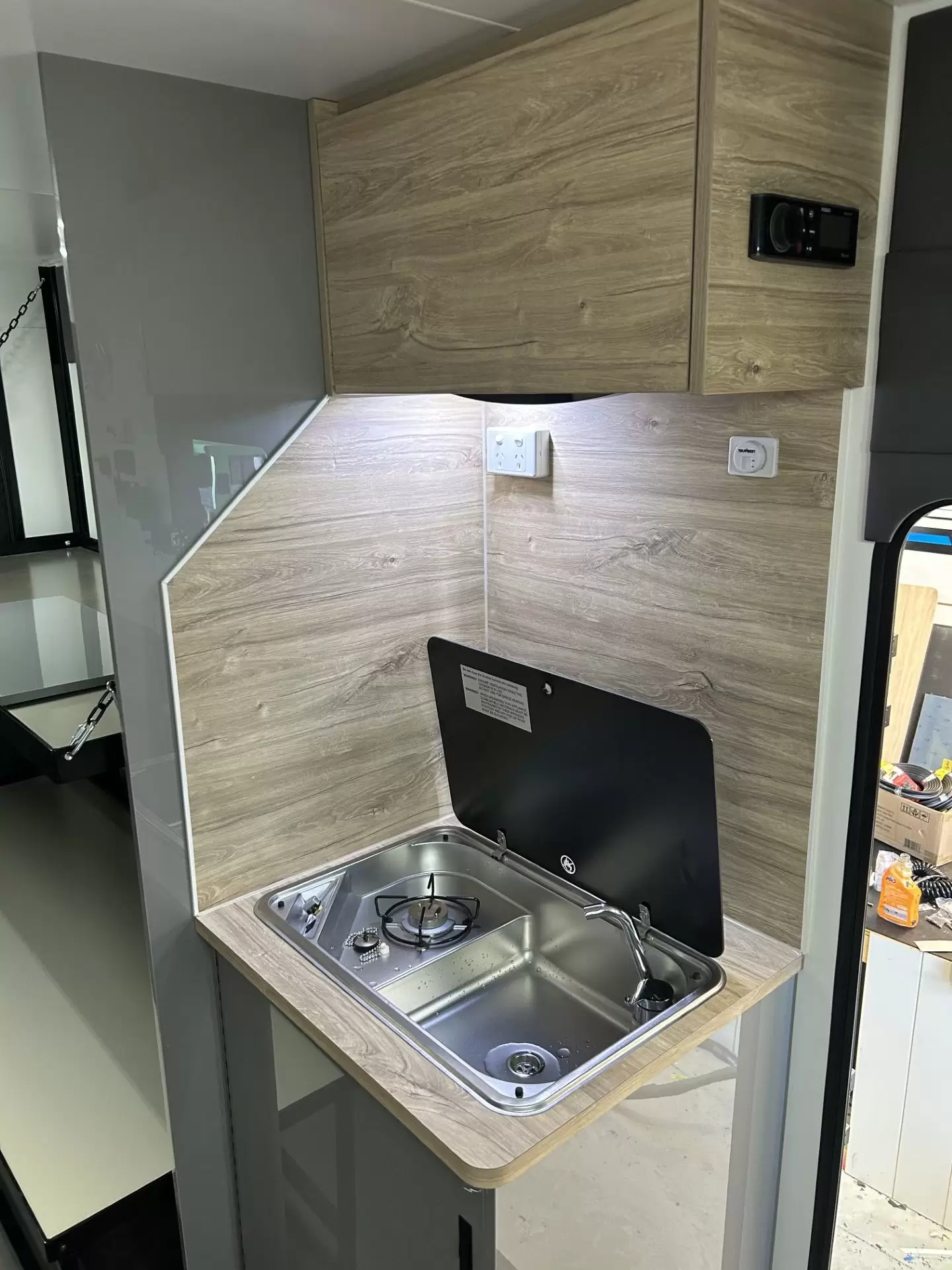

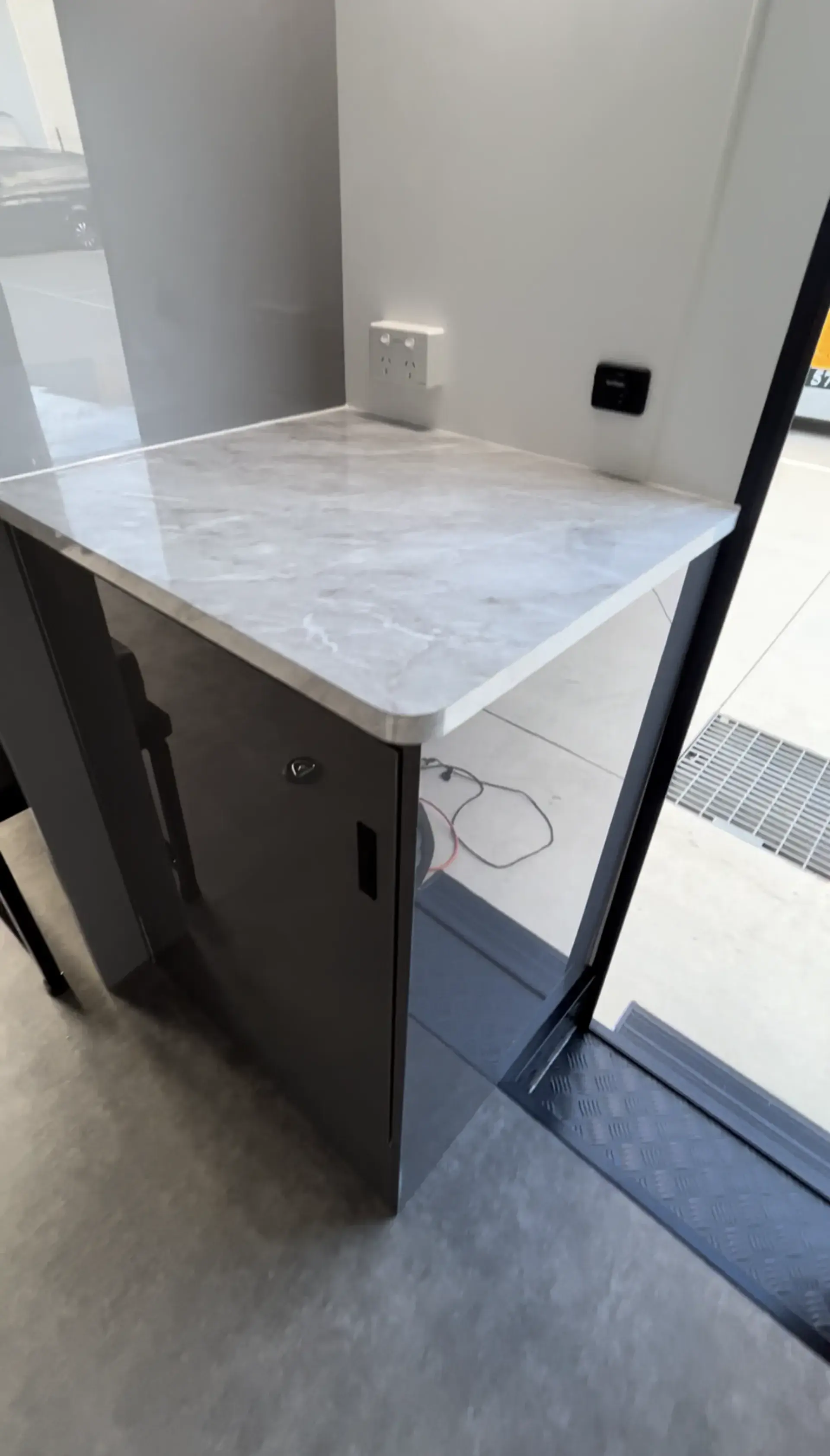

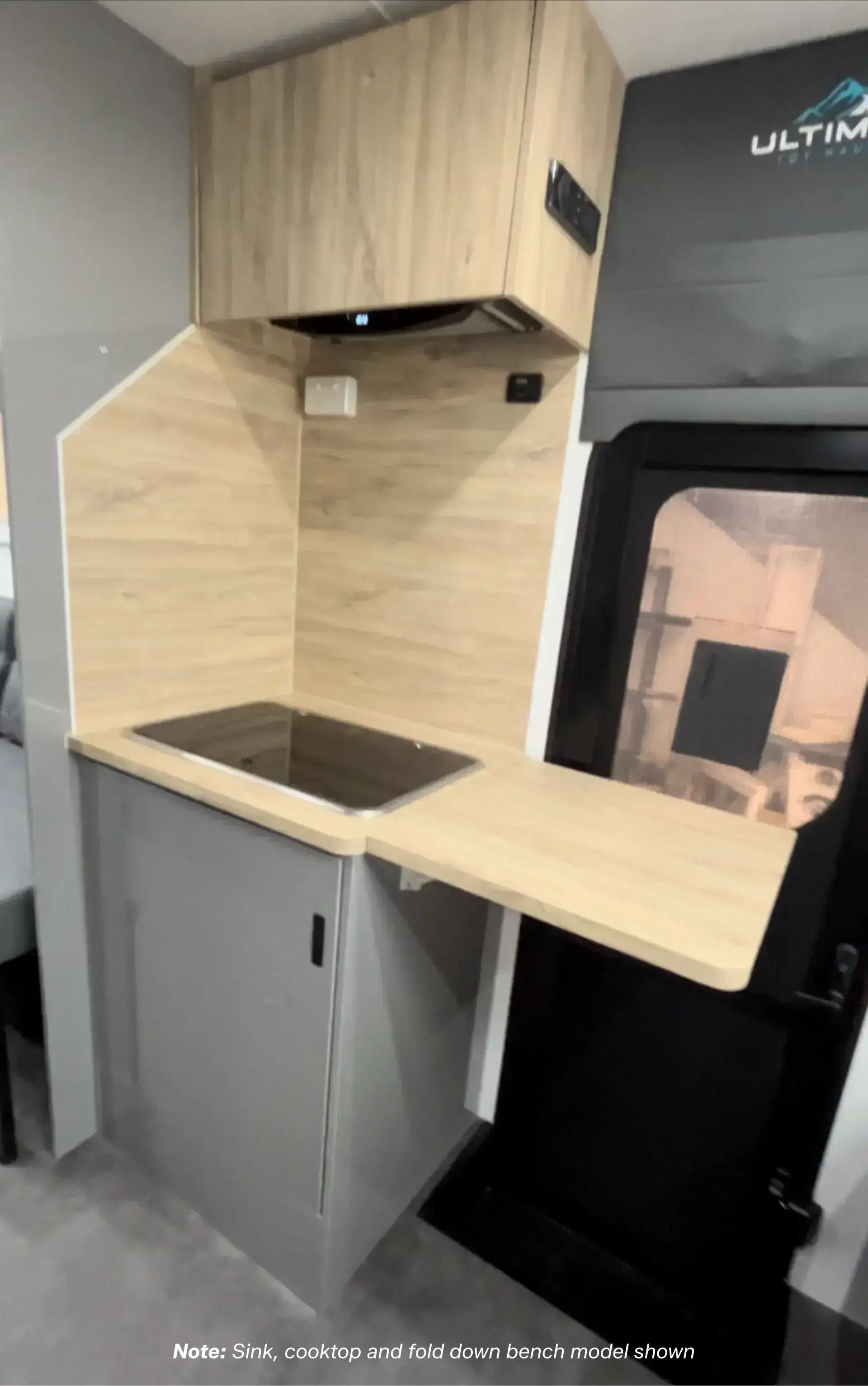

Internal Kitchen side drop down prep bench (to create extra bench space) - Microwave
1 x 25 Litre Microwave - Fans
1 x 12 volt fan - Cabinets Overhead
Overhead storage cupboards in rear of Toy Hauler to both sides - Reading Lights
2 x reading lights with USB outlets - Main Bed Upholstery
Large padded bedhead to Queen bed - Internal Speakers
2 x internal and 2 x external stereo speakers with Bluetooth headunit - Insulation
XPS foam insulation - Fire Extinguisher
Fire Extinguisher - Overhead storage pocket above entry door
- Underbed Storage
Full length storage pocket alongside Queen bed
- Battery
1 x 100 amp Exotronic Lithium battery - Battery Charger
20 amp Enerdrive AC charger - Switches Electrical
240v safety switches - 3 x internal 240 volt power points
- 1 x 15 amp shore power point (external)
- Water Pump
12v water pump switch - 1 x 12v fuse block
- System Monitor Screen
1 x digital hot water monitor - USB Points
5 x total USB outlets
(All colour selections can be customised)
Internal Colours
- CabinetryPremium NX Décor
- Benchtop:Premium NX Décor
- UpholsteryUpholstery: Premium Warwick fabrics
- Mattress FabricPremium Warwick fabrics
- Couch Back restDiamond pattern to lower cushion
- FlooringPremium Commercial grade vinyl
