- Specifications
- Standard Inclusions External
- Standard Inclusions Internal
- Standard Inclusions Electrical
- Colour Selections
TareTare weight 2700kg approx.
ATMATM weight 3500kg
Internal Length6100MM
Overall Length8450MM
Internal Height1980MM
Overall Height3100MM
Internal Width2250MM
External Width2480MM
- Chassis
Supa Gal chassis - Drawbar
1900mm extended drawbar - 6 in drawbar and 6in main rail
- Suspension

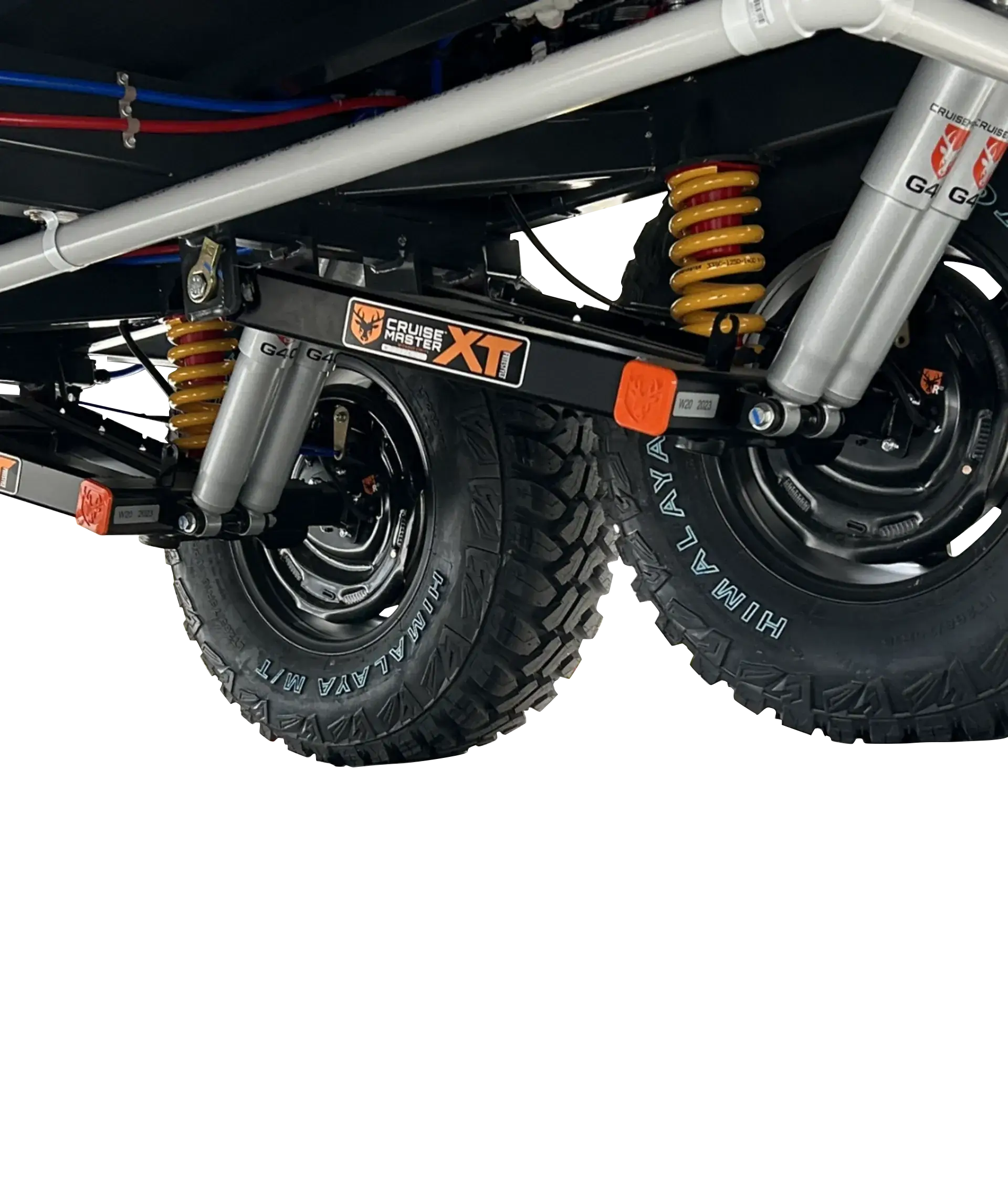

Cruisemaster Independent XT offroad suspension (3700kg rating) - Coupling
Cruisemaster D035 Coupling - Breaksafe
Breakaway switch - Safety Chains
Safety chains - Handbrake
- Jockey Wheel
Jockey wheel - Gas Regulator
Gas compliance certificate - Electrical compliance certificate
- Brake
12in electric brakes with breakaway system - Frame
Robust aluminum box frame - Cladding
Premium 3mm aluminum composite cladding - Air Conditioner
My COOLMAN 3000w air conditioner - Awning

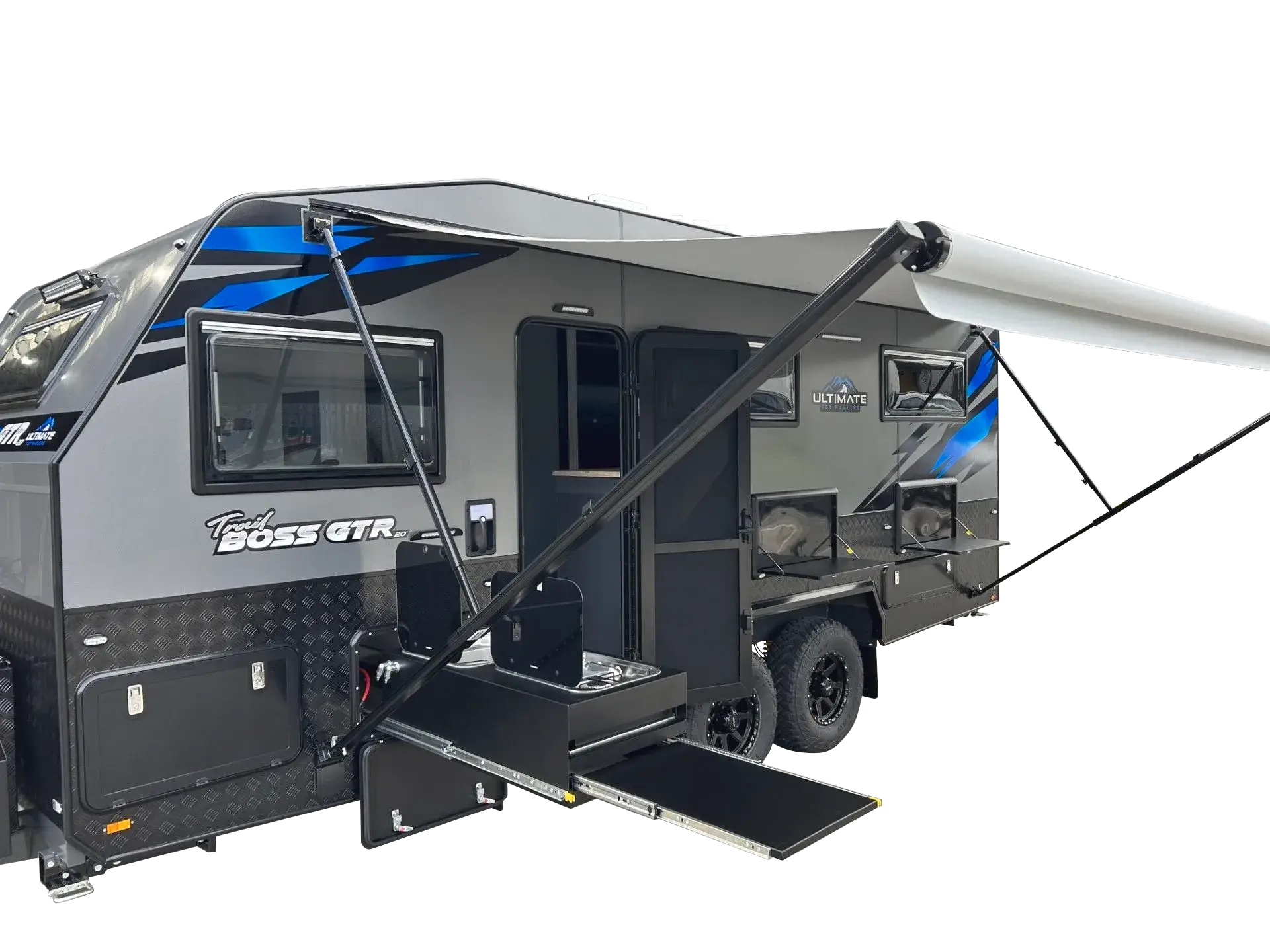

Aussie Traveller 17ft awning - Solar
2 x 250 watt Exotronic solar panels - External Shower
Hot & Cold outdoor shower - Water Tanks
2 x 95 litre water tanks - City water bypass system
- Toolbox with jerry can holders (size
1450mm x 550mm x 500mm no slideouts) - Front drawbar tap
- Kitchen External

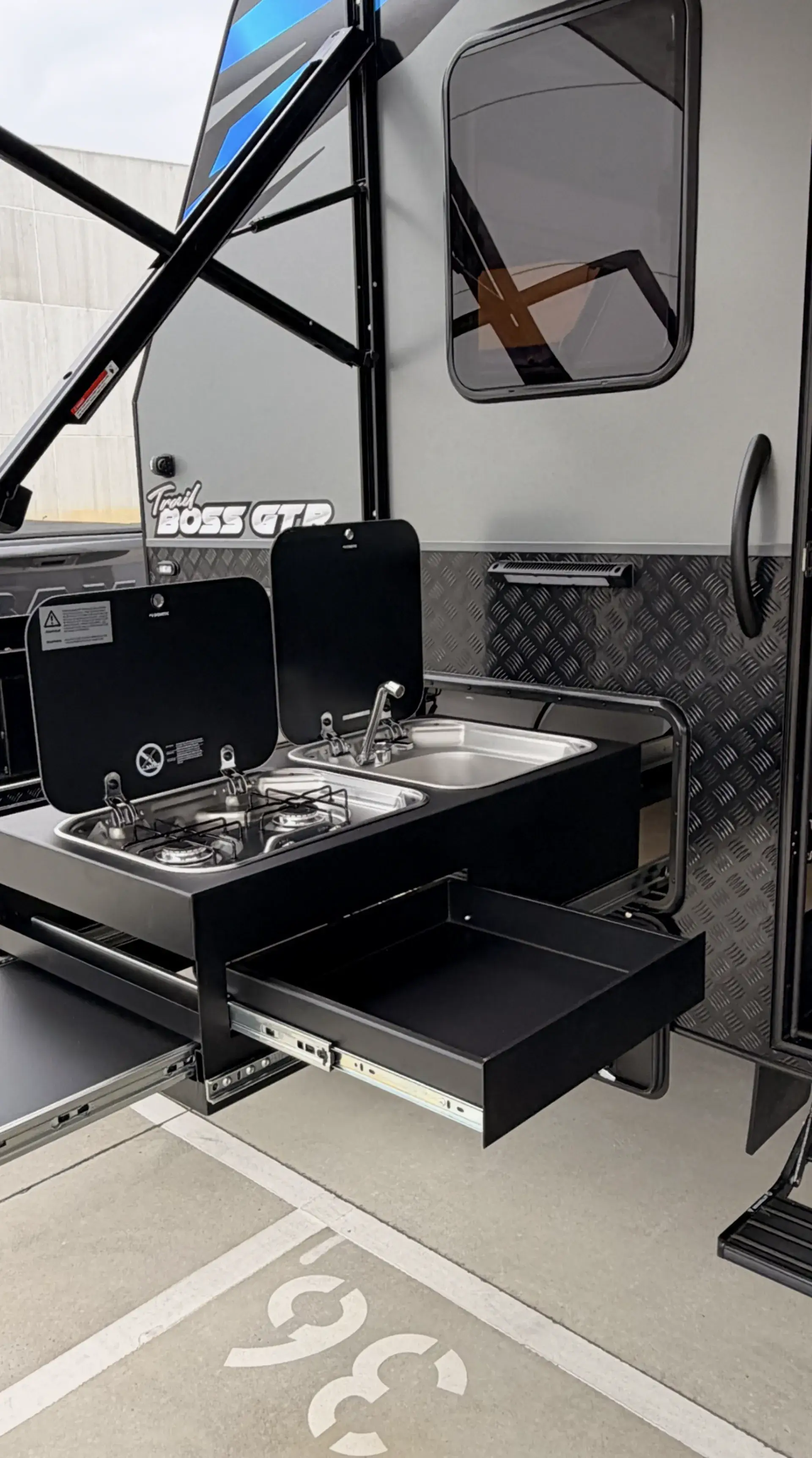

1 x slide out Kitchen with built in sink, two burner stove, slide out table and cutlery drawer - Power Points External
1 x external 240 volt power point - Gas Bottle
2 x 9kg gas bottles - Awning Lights
2 x rear and 2 x side awning lights - Picnic Table
1 x external picnic table - Checker Plate
Checker plate to lower panels - Rims Wheels Tyres
265 x 75 x 16 offroad tyres - 12v rear door winch
- Drop Legs

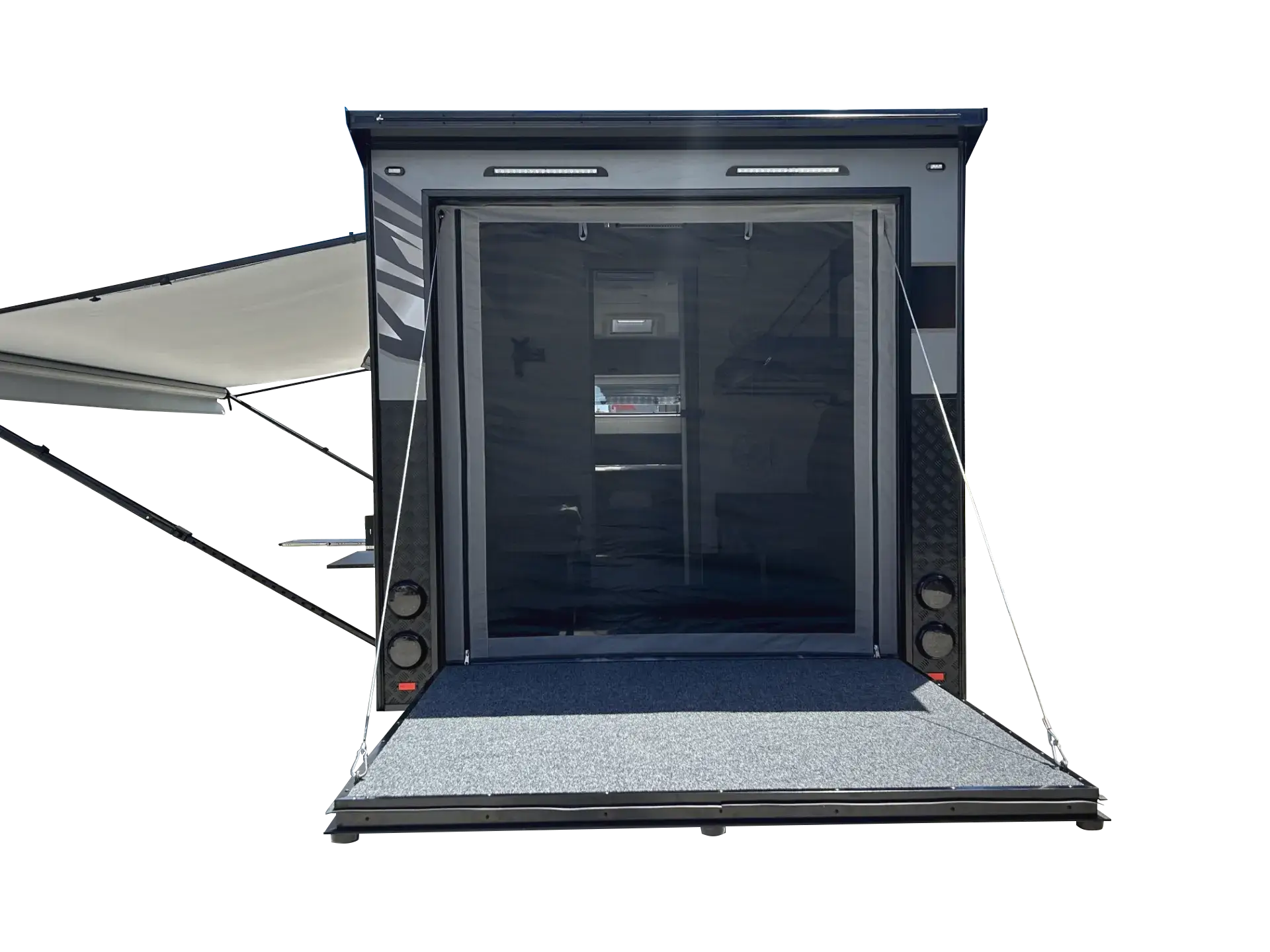

4 x adjustable stabiliser legs - Charcoal marine carpet on rear door
- Rear door overhang wing with roof trims
- Decals
Premium graphics kit - Windows Fly Screens
Rear Flyscreen - Fire Extinguisher
Fire extinguisher

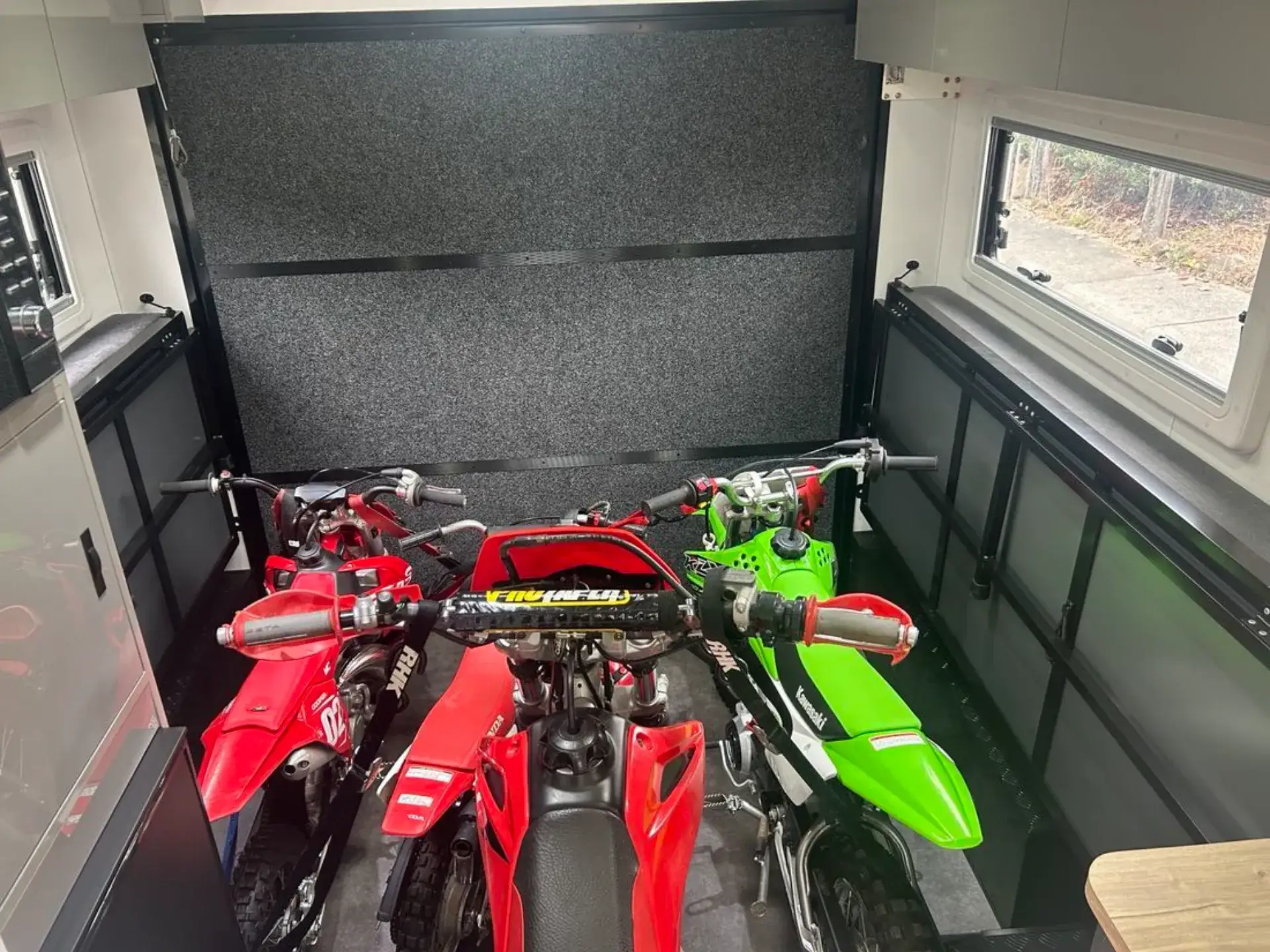

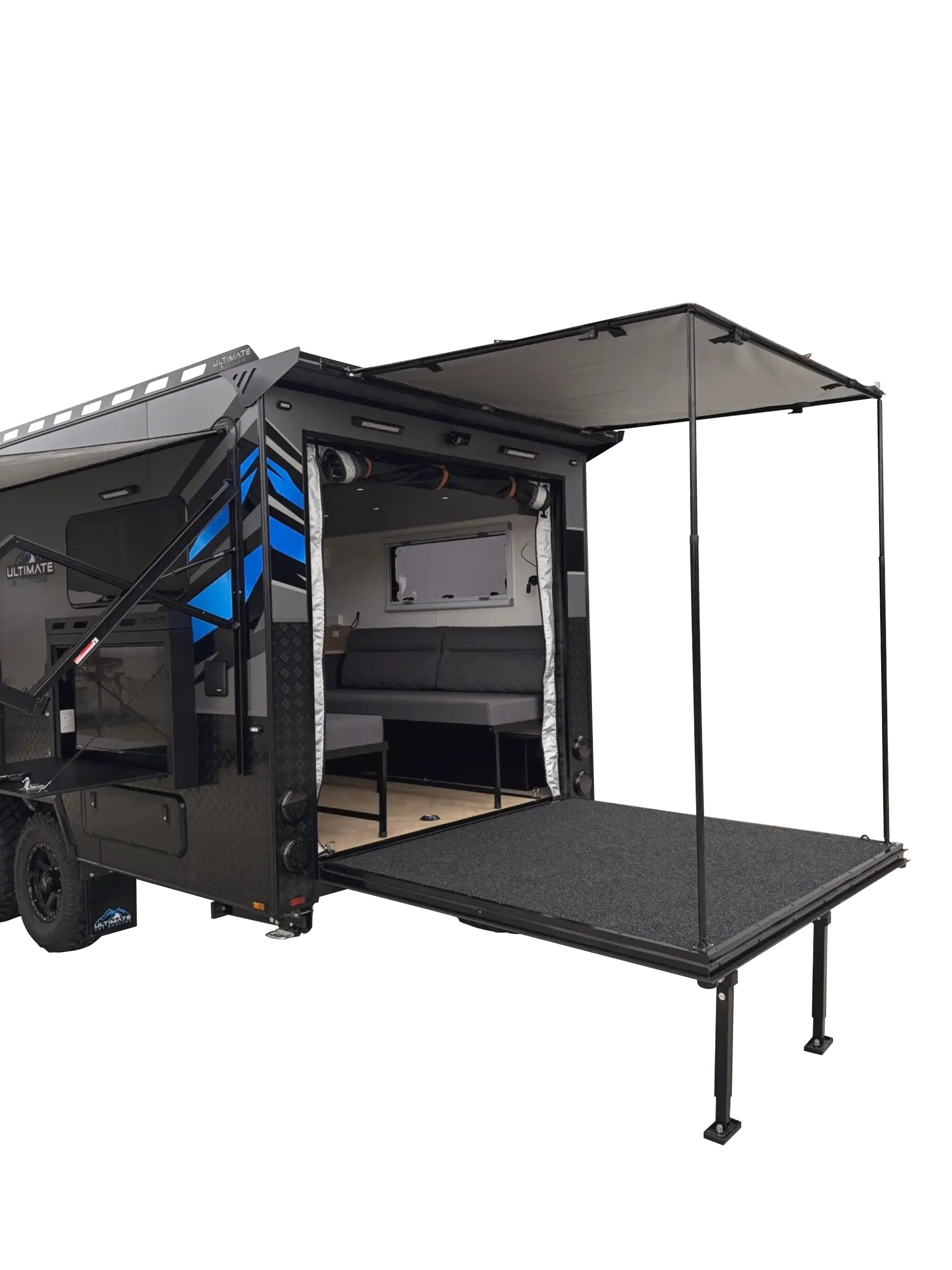

- Rear Garage

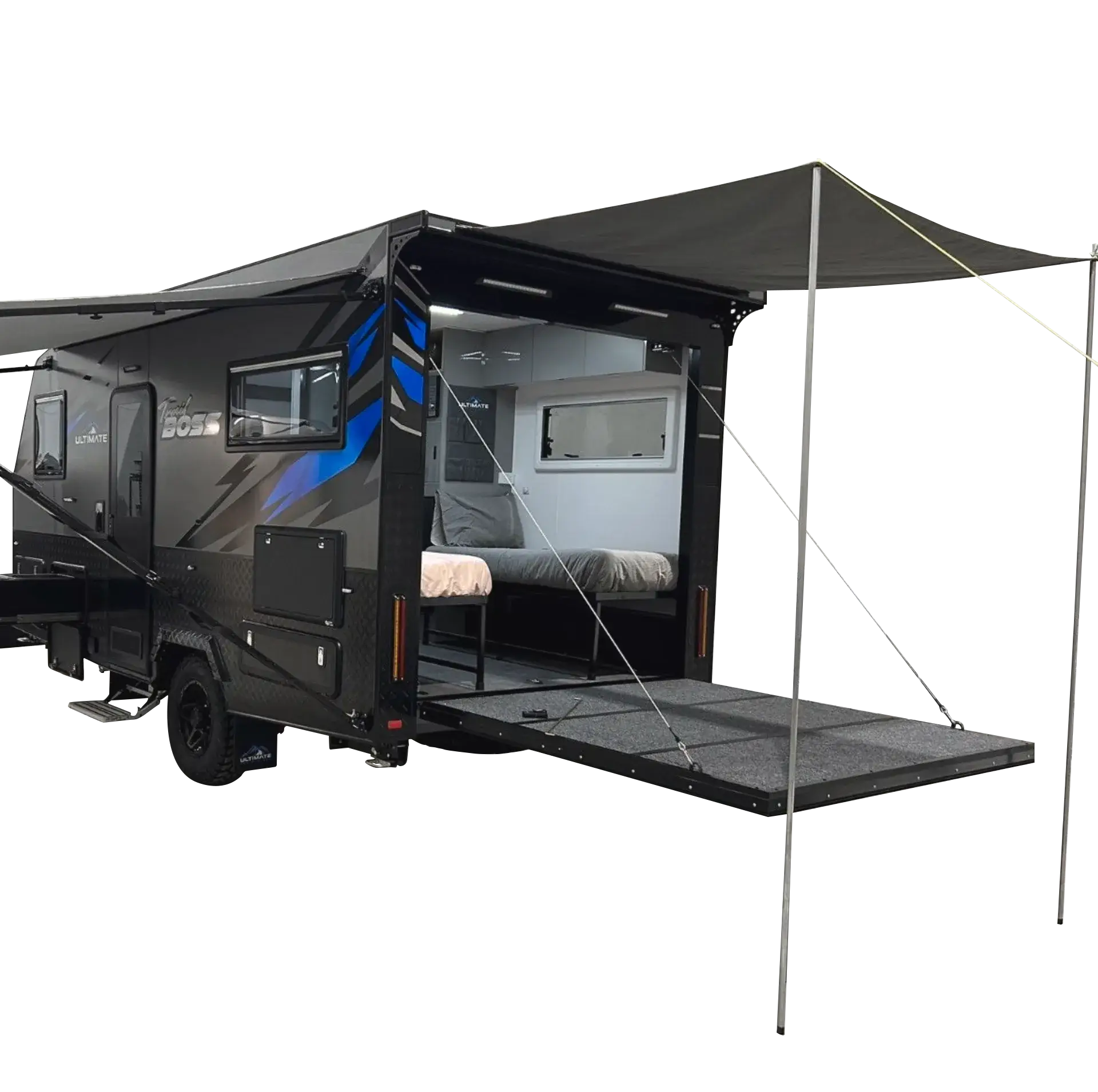

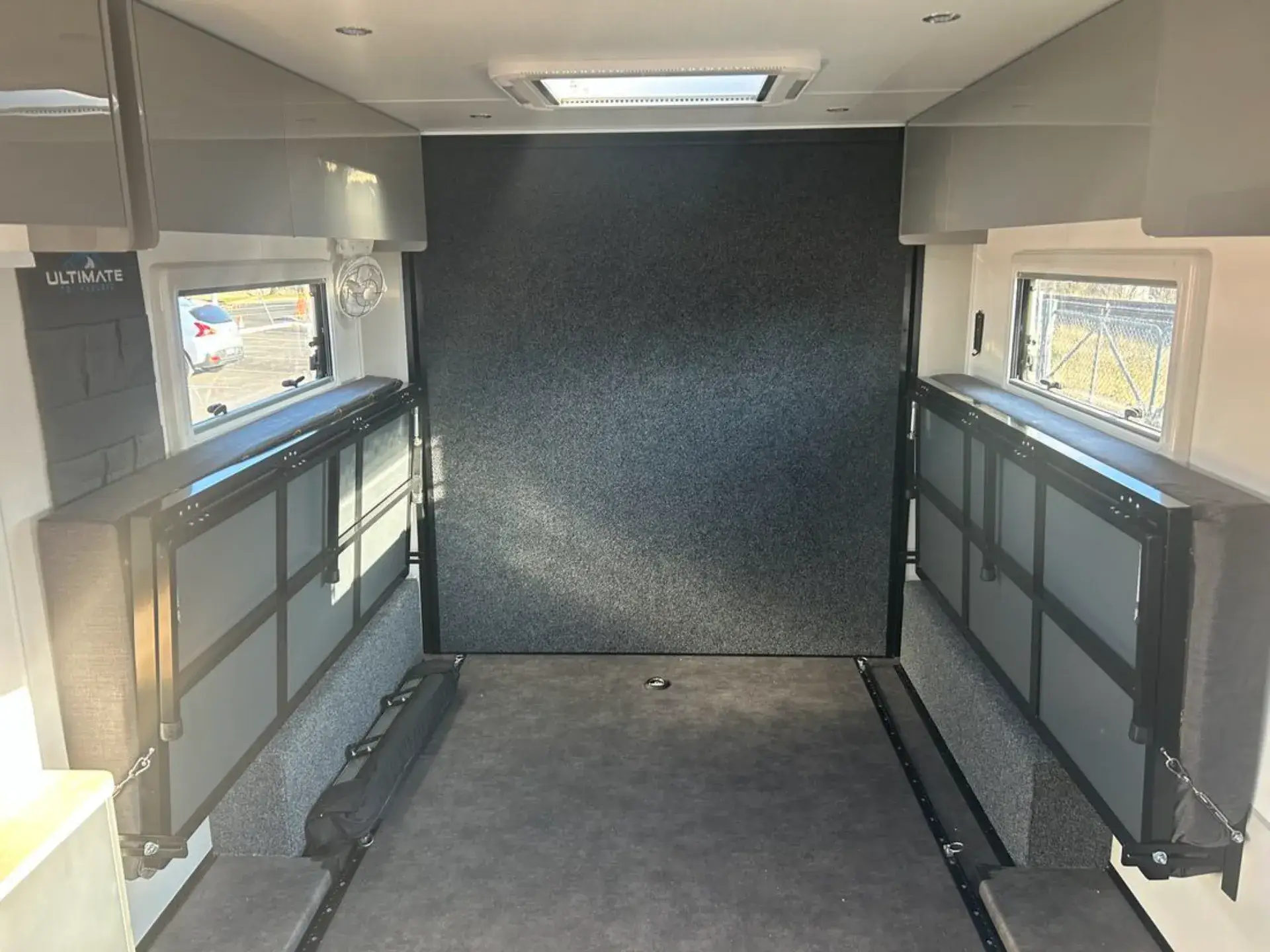

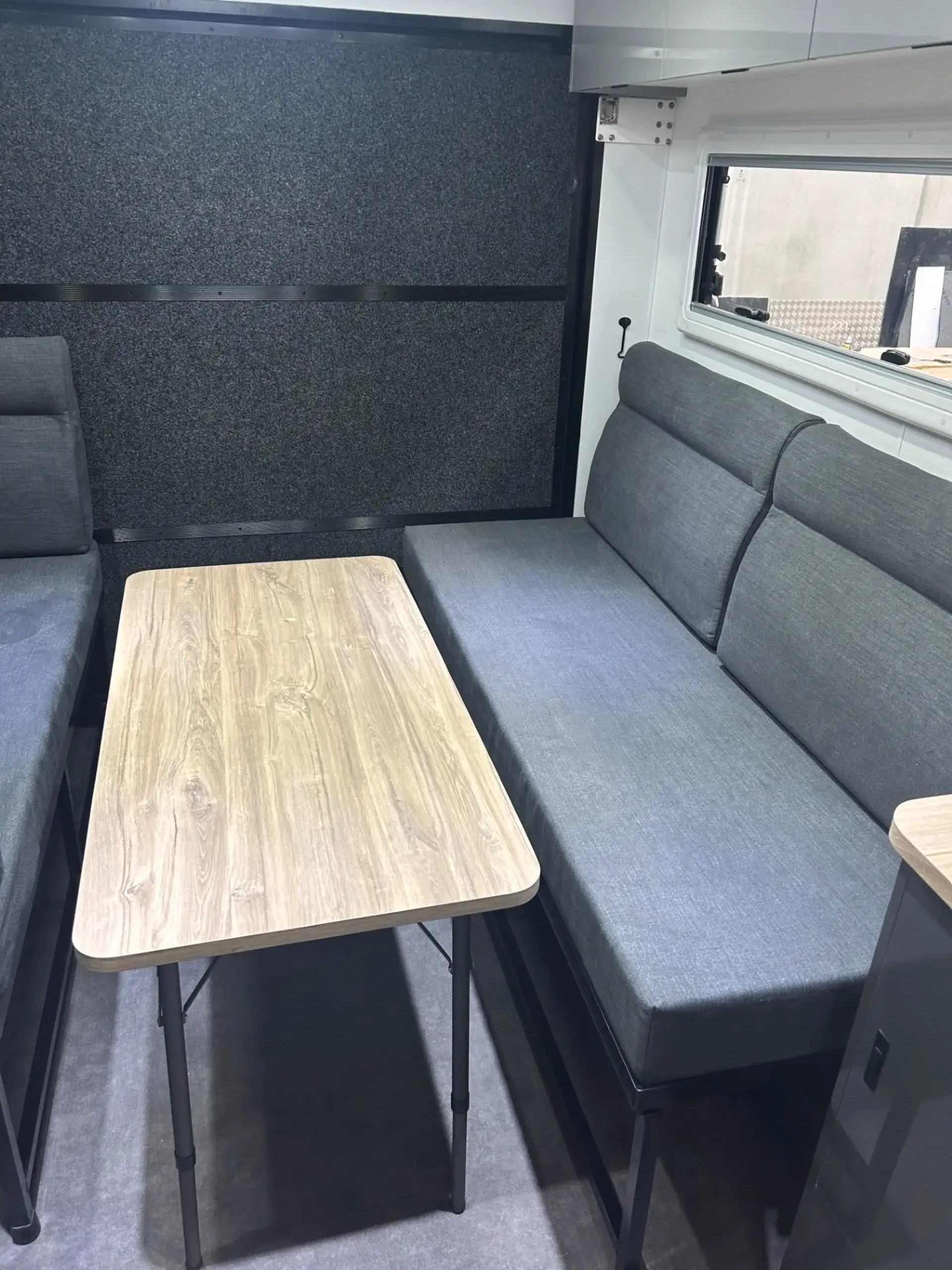

Rear garage measuring 1850mm x2350mm with beds/couch - Main Bed

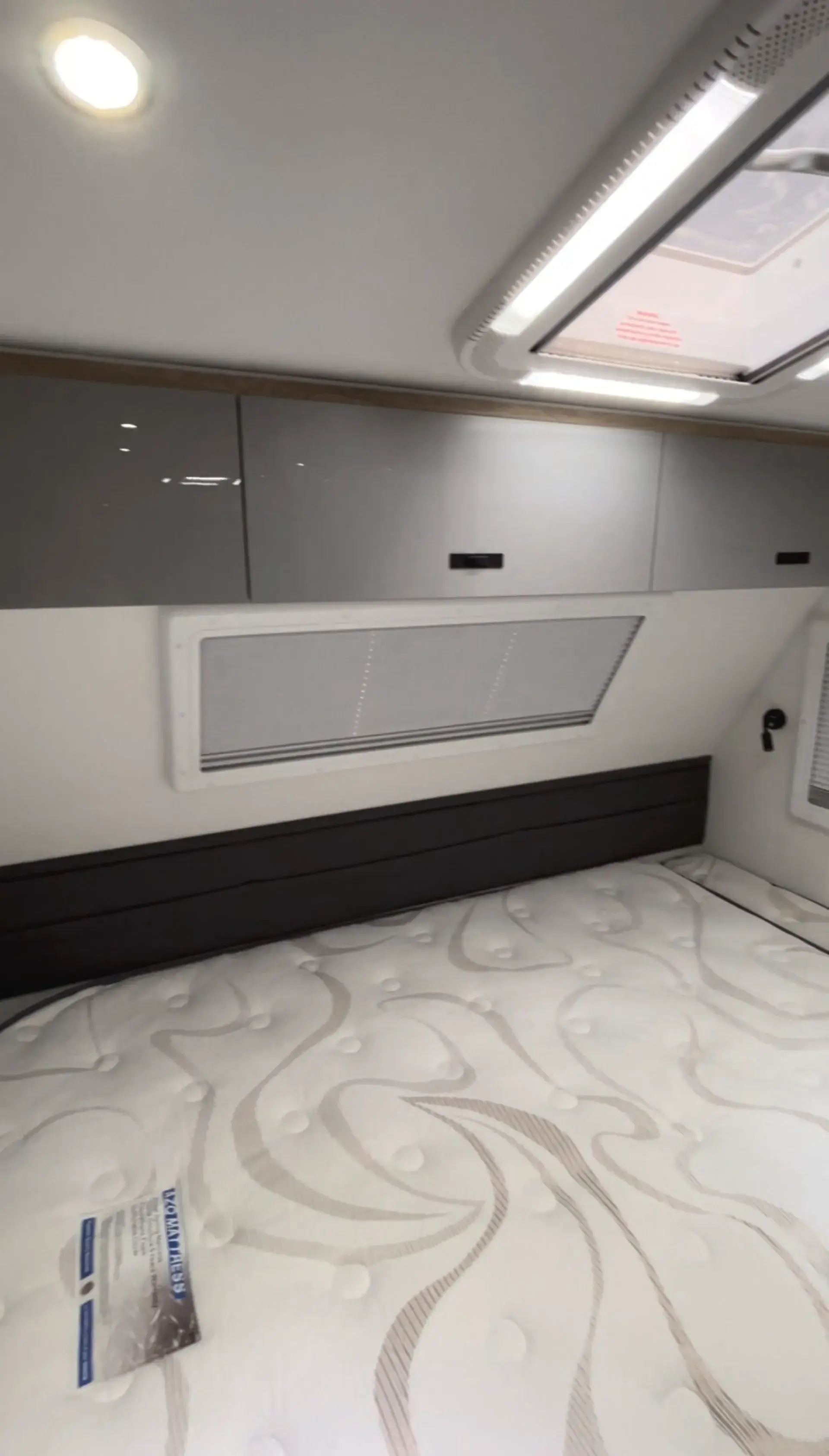

1 x pocket spring Queen sized bed - Bed Converter

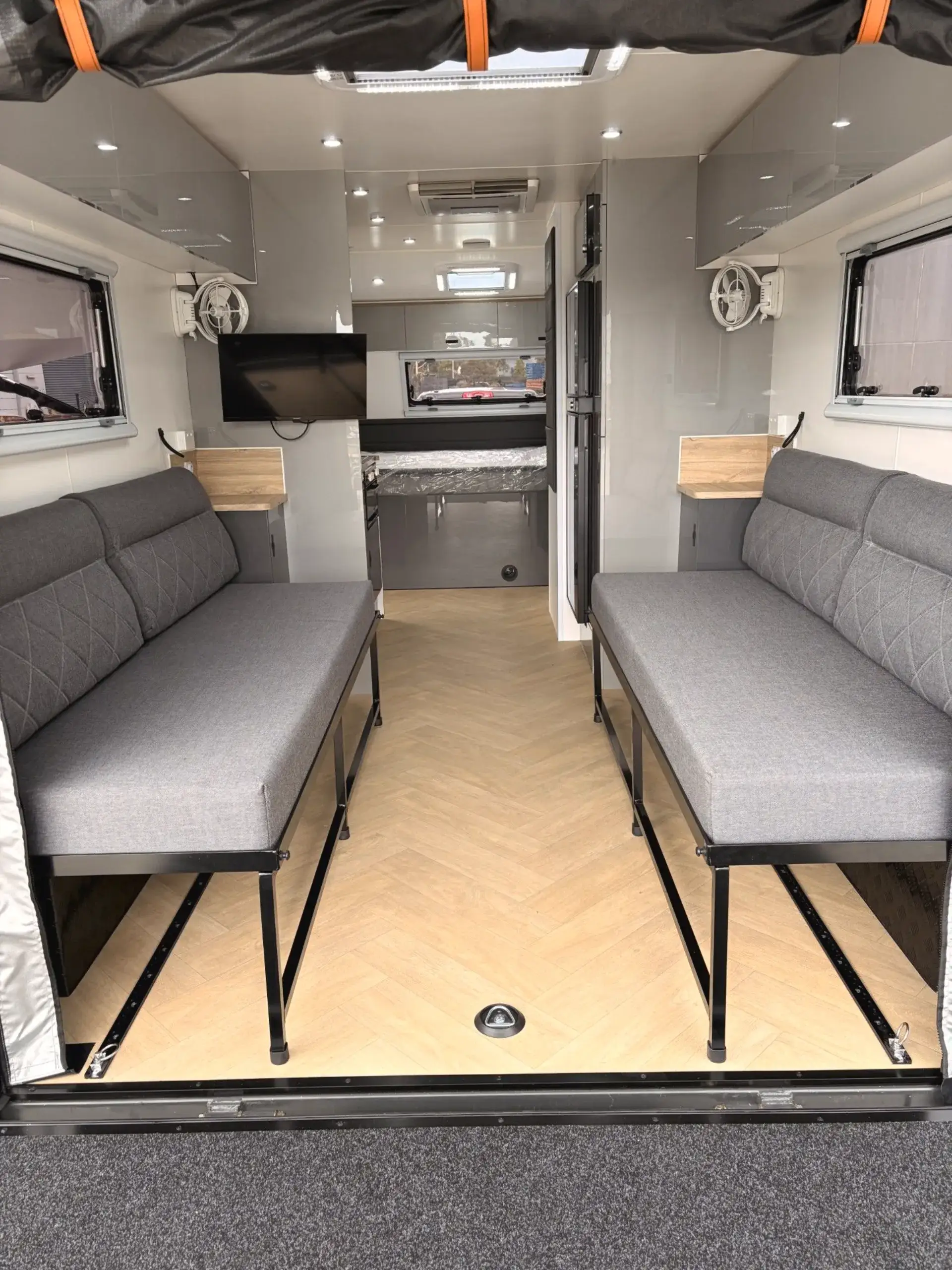

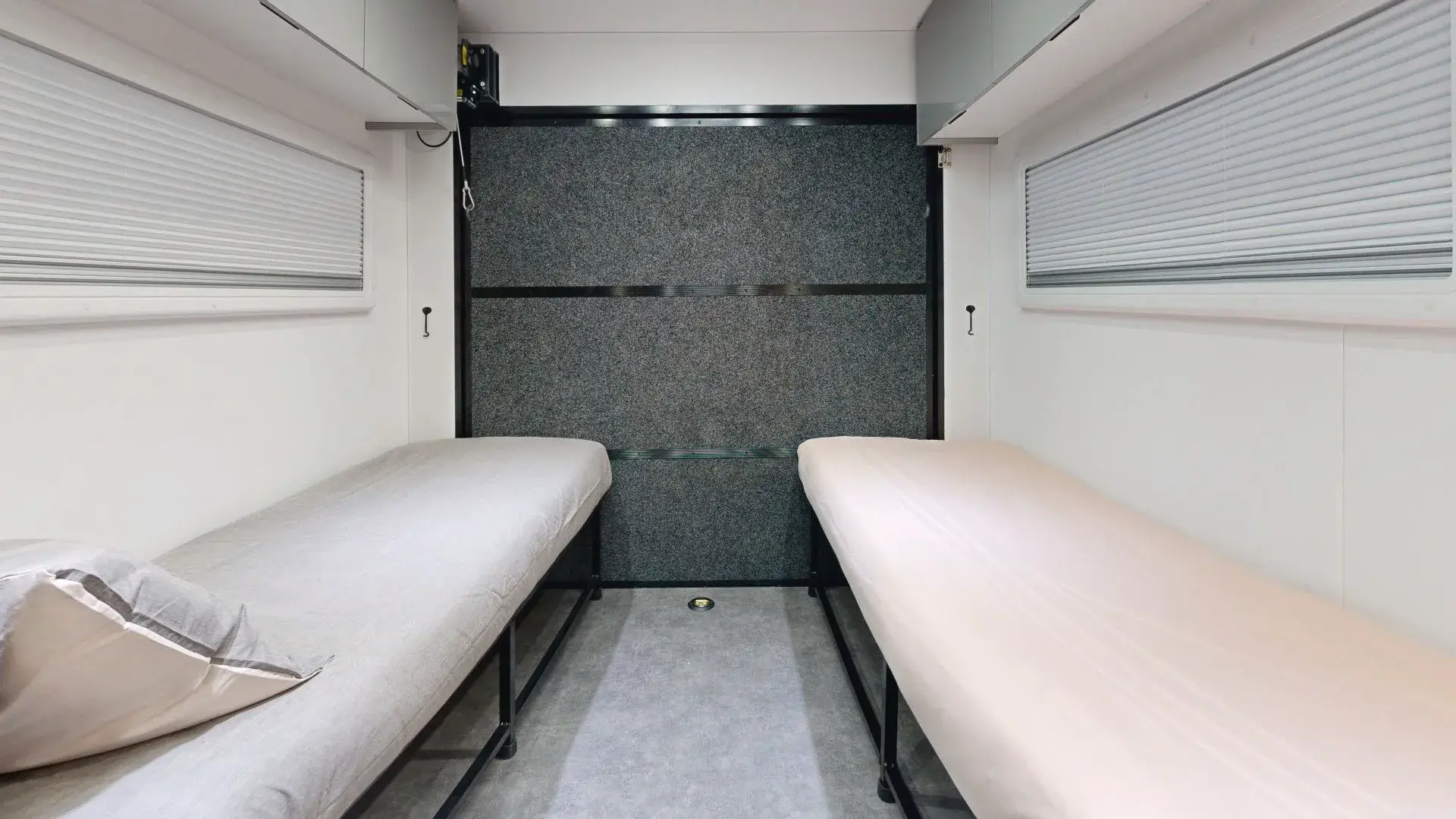

2 x fold up beds/ couches 1900mm x 750mm - Mattress
150mm thick mattress on rear beds with couch back rests - Fridge
12v 188 litre Dometic compressor fridge - Roof Hatch

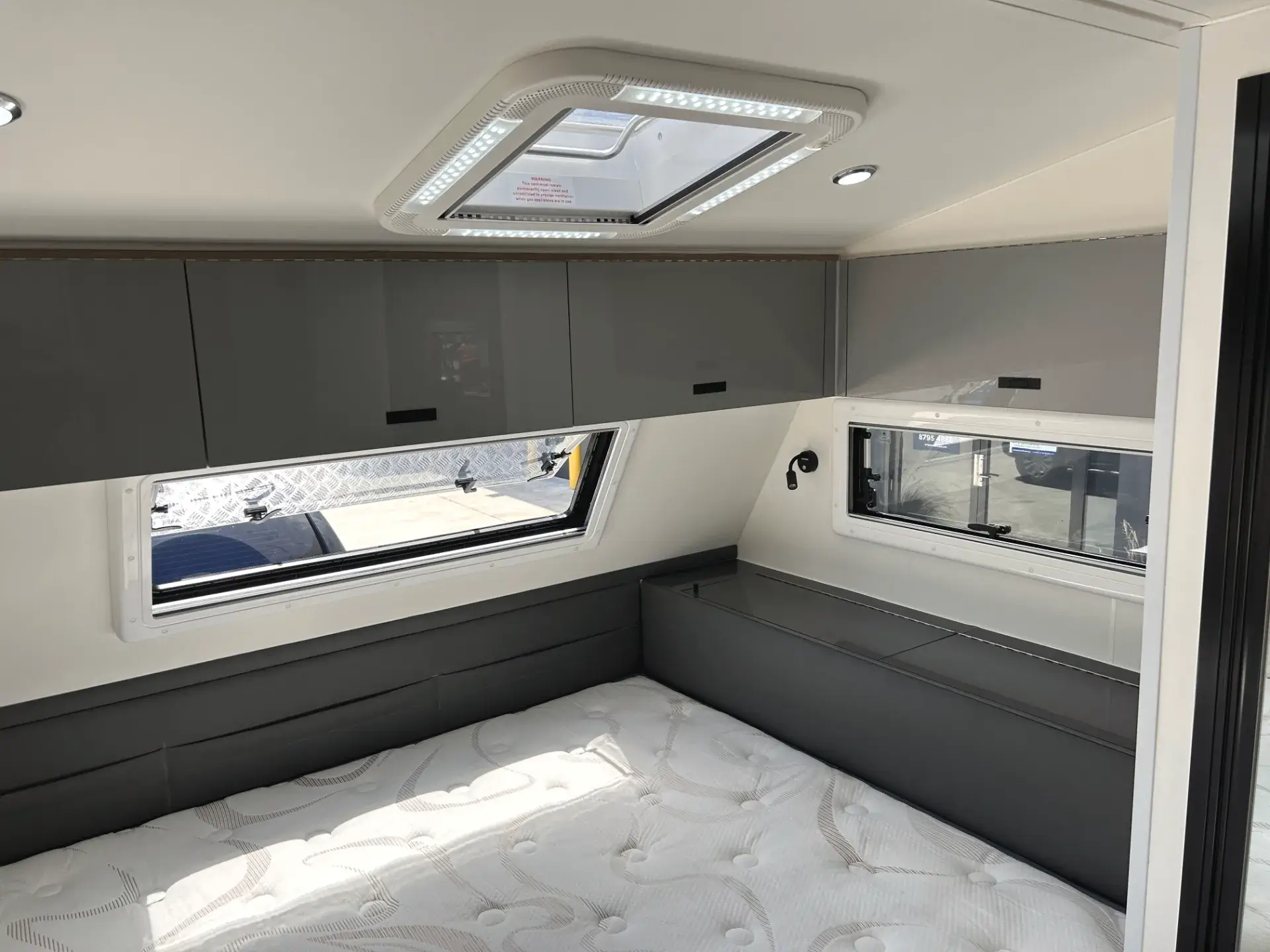

2 x opening roof hatches with blinds/ flyscreen and LED lights - Shower and Toilet

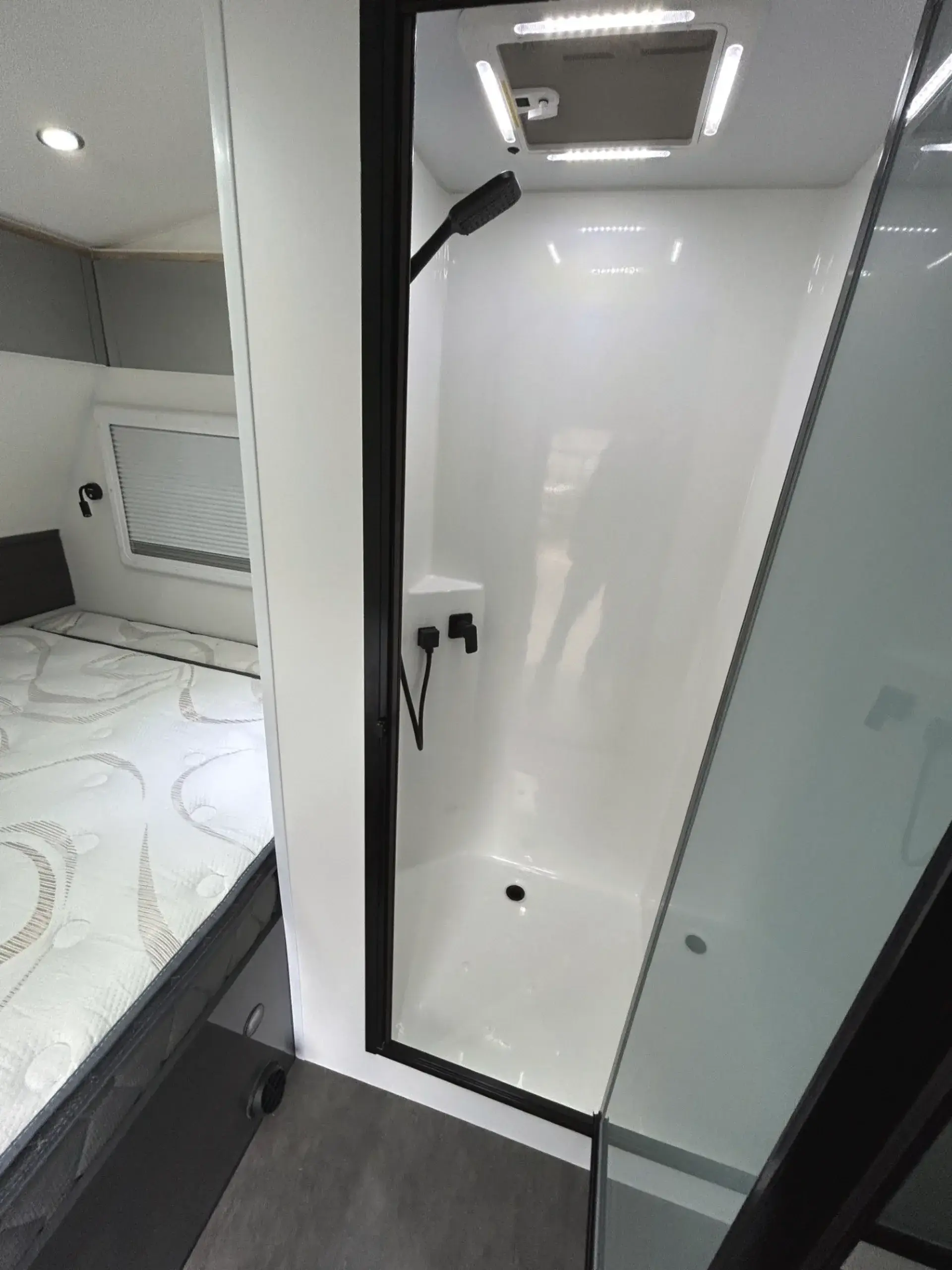

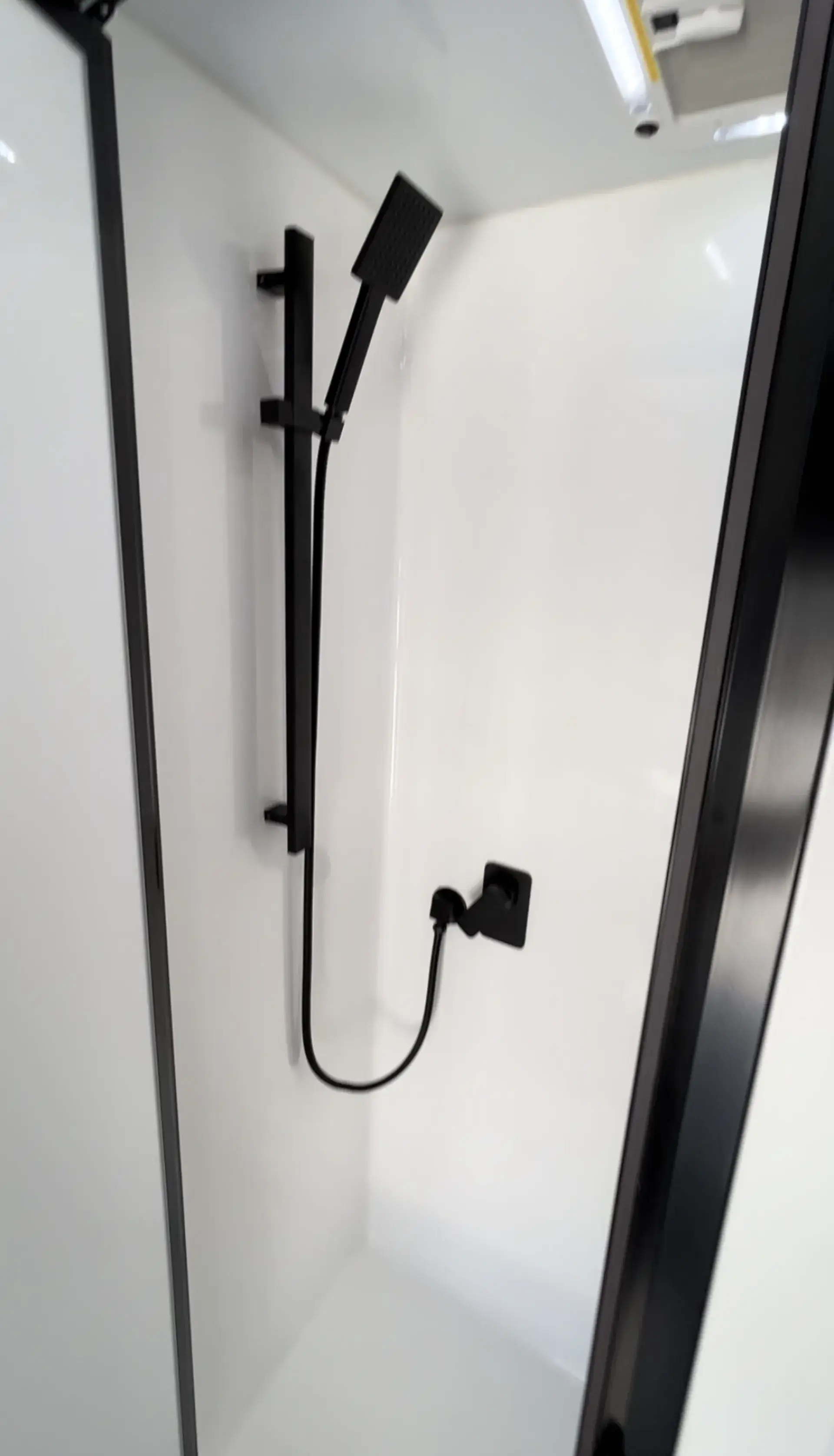

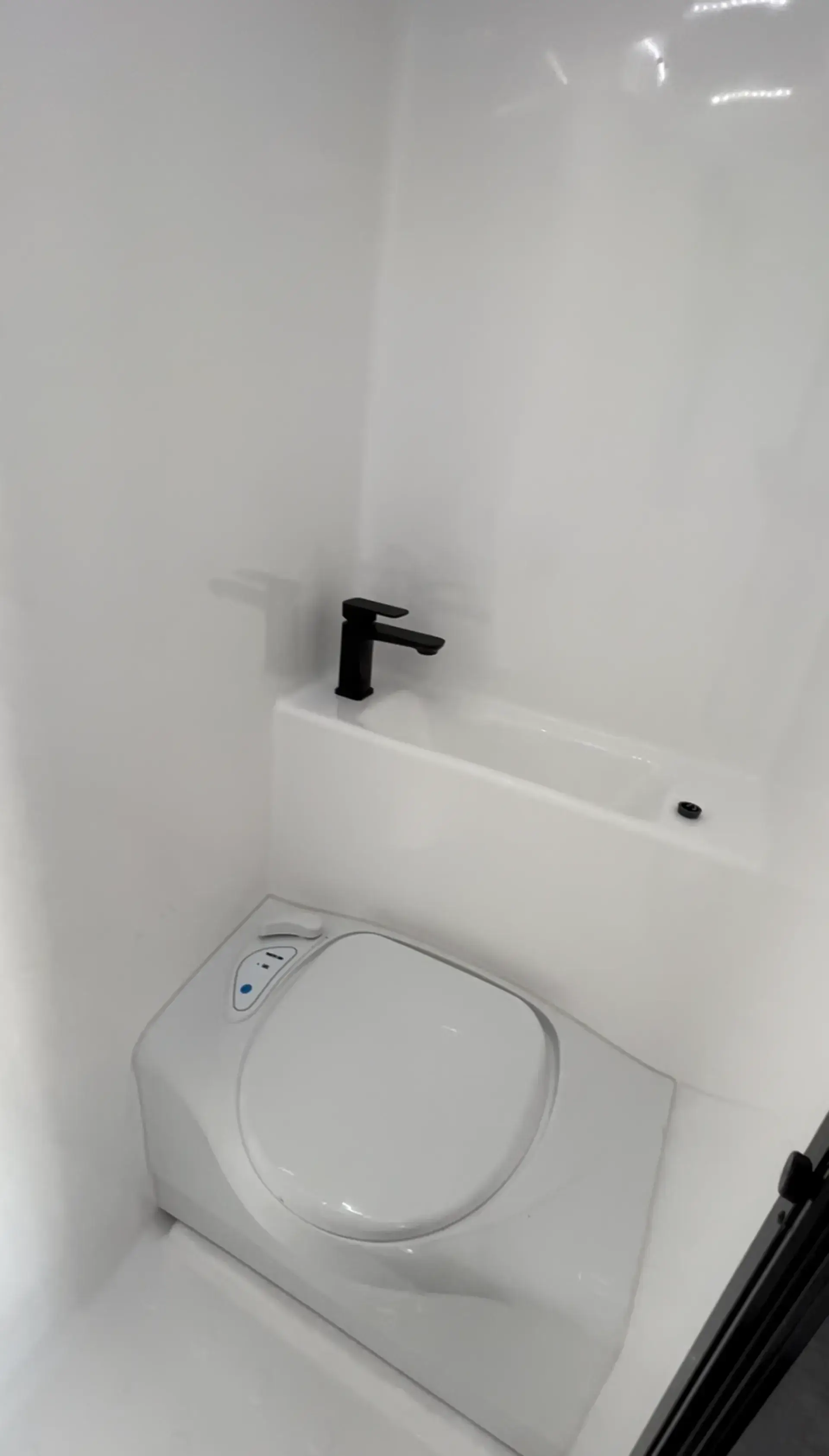

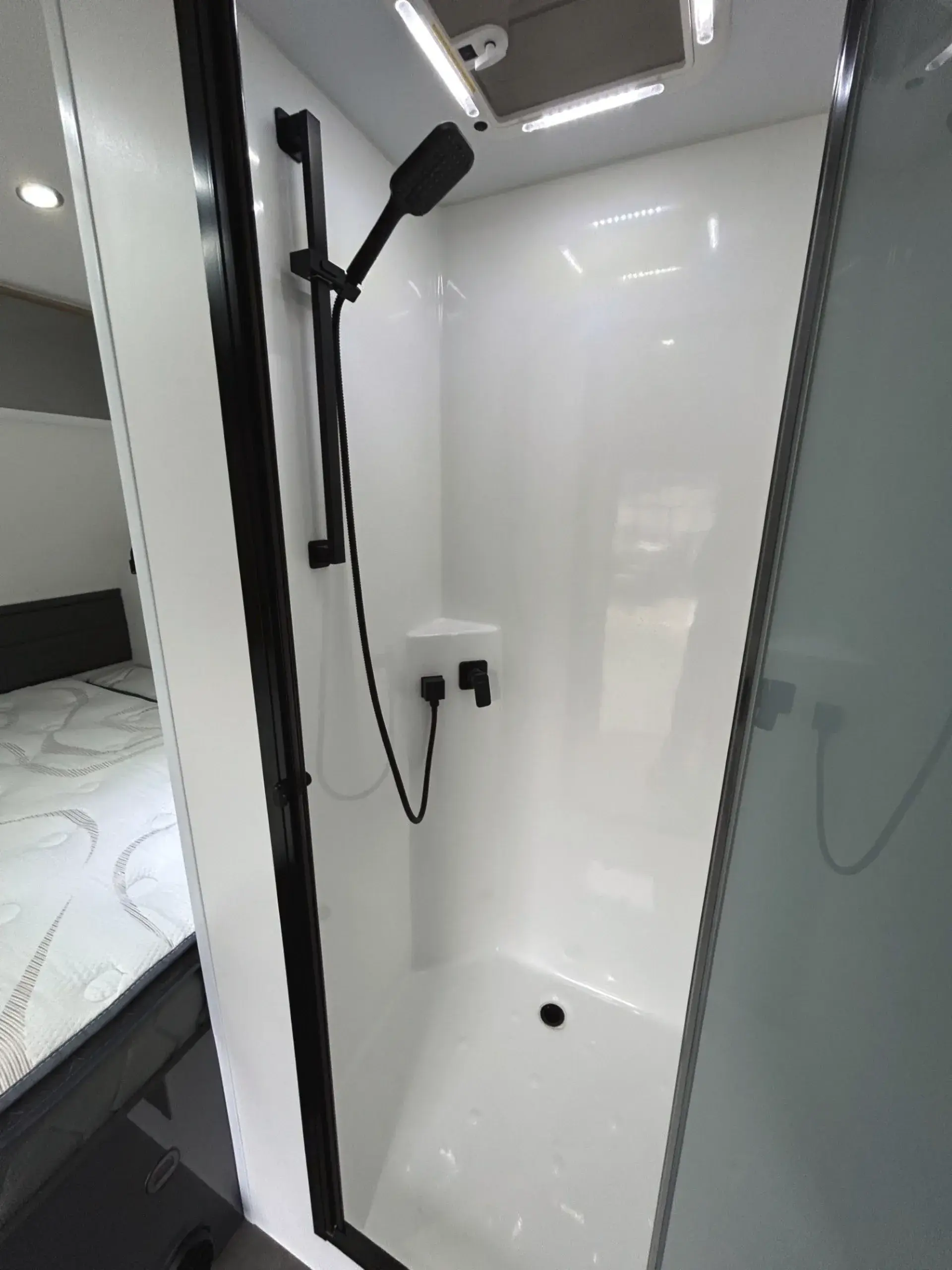

Large moulded fiberglass shower unit with Thetford Cassette toilet and hand basin - Shower Door
Premium ‘Black Pack’ shower accessories including 2 x mixer taps, shower rail and shower door with travel lock - 12 volt fan
1 x 12 volt fan - Windows
5 x Aussie Traveller Eurovision Windows with Flyscreens and blinds on all internal windows and hatches - Tv

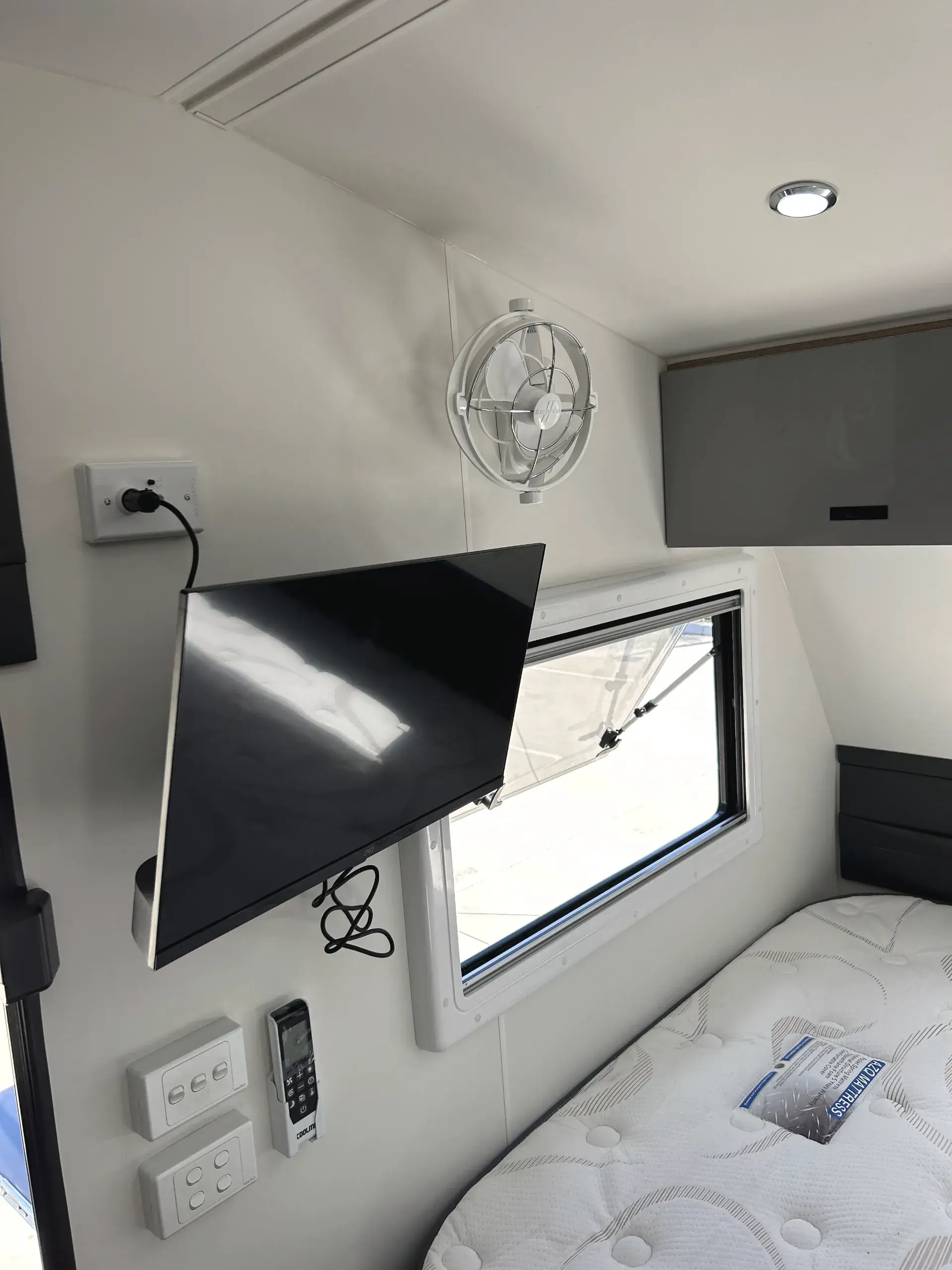

1 x TV mount and 1 x 12v 24in digital TV - Internal Speakers
2 x internal and 2 x external speakers with Bluetooth headunit - Cabinetry Cnc
Lightweight premium cabinetry- Premium NX decor - Cupboards Storage
Locks on all cupboard doors and overheads - Hinges
Piano hinges on all overheads with gas struts. - Soft Close Drawers
Soft close drawers/doors - Insulation

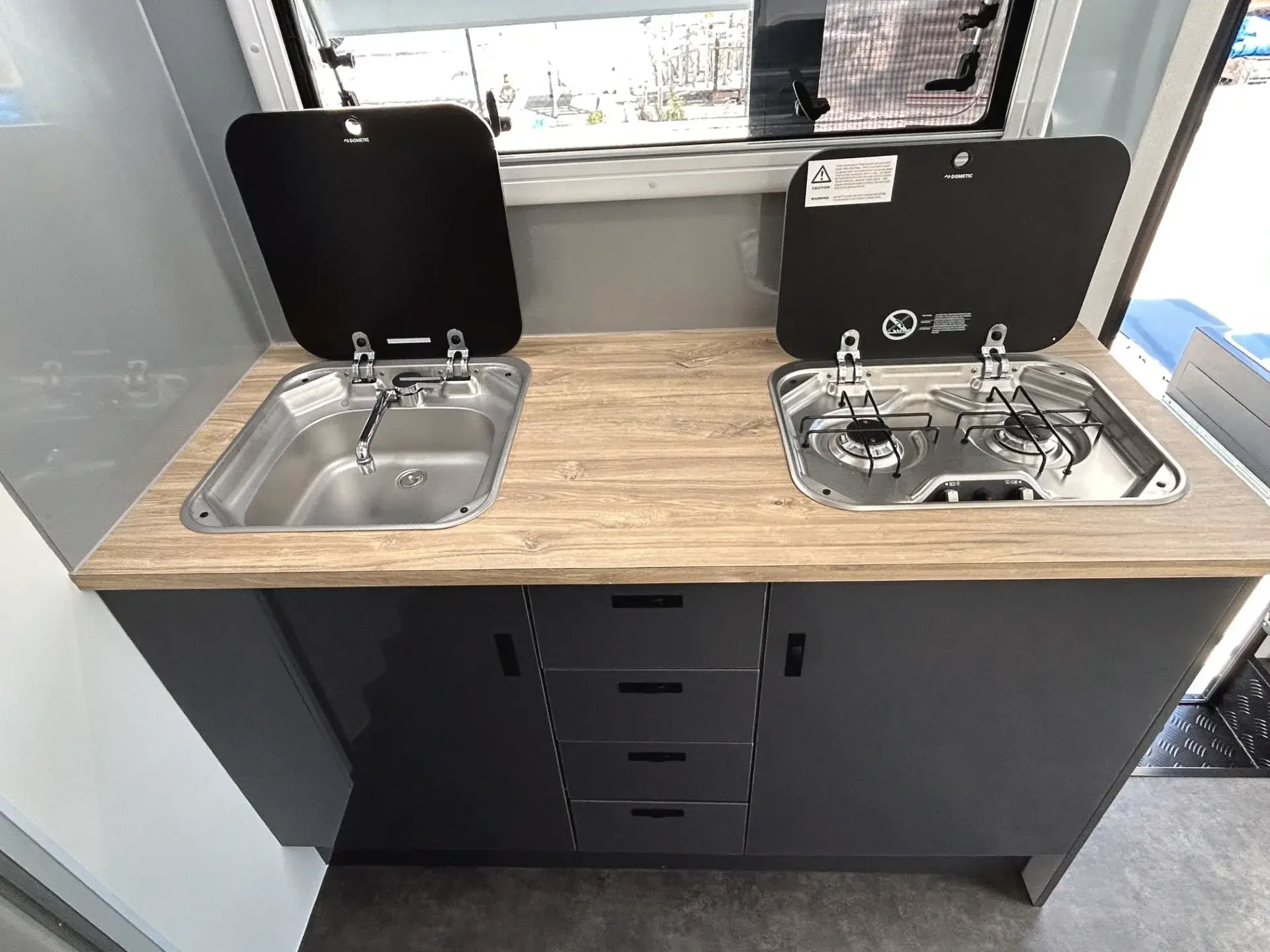

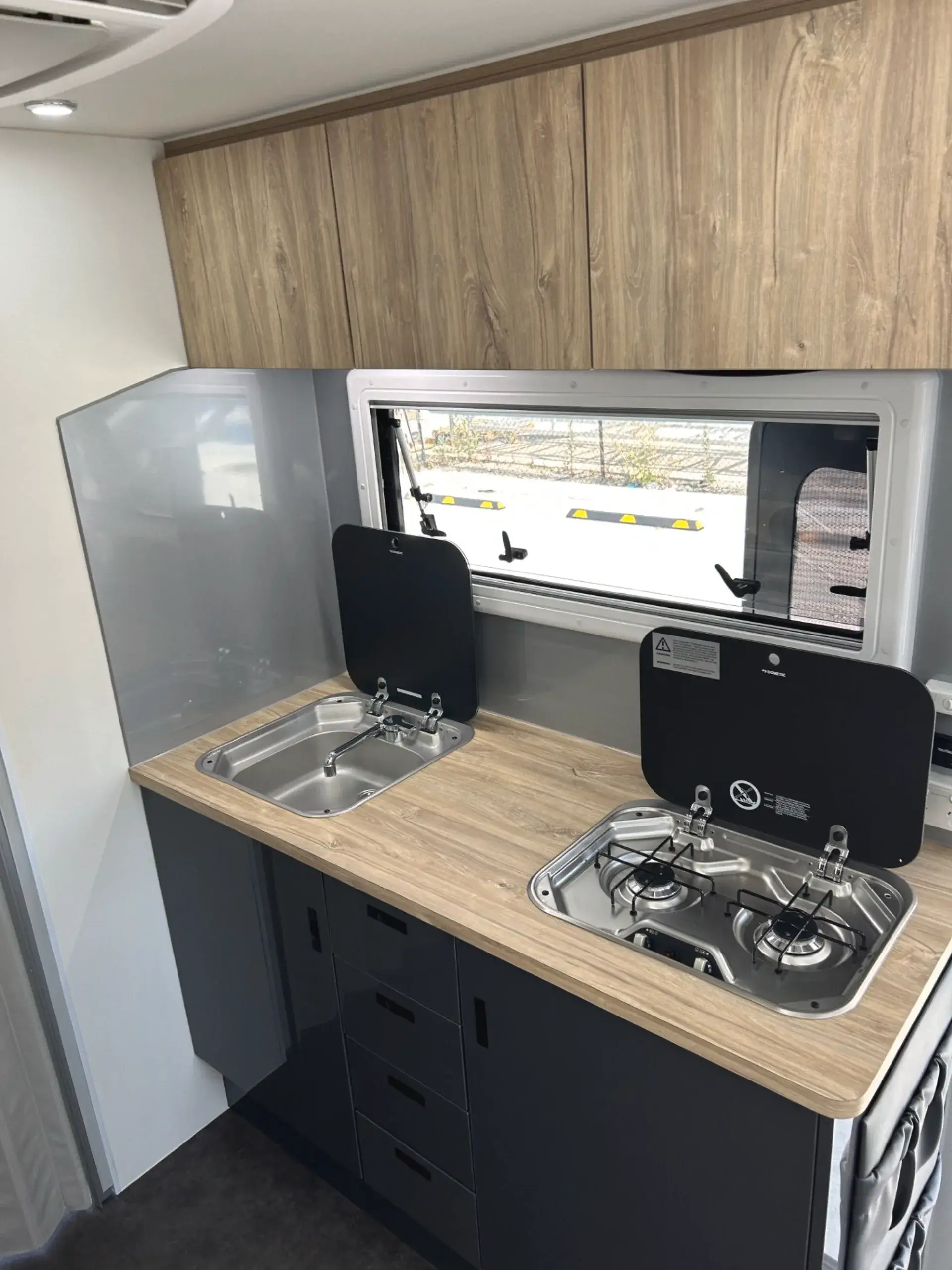

XPS Foam Insulation - Kitchen Internal
Internal Kitchen with overhead cabinets including two burner stove with sink and mixer tap, overhead rangehood, Premium NX Decor splashback and bench top, lockable drawers and doors - Pull Out Pantry
Double pantry - Battery Monitor
Battery monitor - Water Tank Gauge
Digital water tank gauges - Hot Water System
Fogatti Instantaneous Hot Water Unit - 2 x adjustable tie down tracks
- 1 x tie down point
- Entry Security Door
Triple lock entrance/ security door with flyscreen and blind - Reading Lights
2 x reading lights with USB outlet - Usb Points
5 x USB outlets - Cabinets Overhead
Overhead Cupboards above Queen Bed - Microwave
1 x 25 Litre Microwave - Fire Extinguisher
Fire extinguisher
- Battery
200 amp Exotronic lithium battery - Solar Panel
2 x 250 watt Exotronic solar panel - Inverter
Victron 12v 1000w Inverter - Battery Charger
Victron DC-DC 50amp charger - AC Charger
Victron AC 30amp charger - MPPT Charger
Victron 50amp MPPT charger - 1 x 300amp Victron Shunt
- Internal Lights
8 x LED internal downlights - Fans
1 x Sirocco fan in bedroom - Power Points Internal
3 x internal 240 volt power point - Shore Power Point (External)
1 x 15 amp shore power point (external) - Switches Electrical
240v safety switches - Water Pump
12v water pump switch - Fuse Block
1 x 12v fuse block - System Monitor Screen
1 x digital hot water monitor - 240v External Points
1 x external 240 volt power point - Solar Safety Fuses
2 x 12v solar safety fuses
Internal Colours
- CabinetryPremium NX Décor
- BenchtopPremium NX Décor
- UpholsteryPremium Warwick fabrics
- Mattress FabricPremium Warwick fabrics
- Couch Back restDiamond pattern to lower cushion
- FlooringPremium Commercial grade vinyl
