TareTare weight 2750kg approx.
ATMATM Weight 3500kg
Internal Length6415MM
Overall Length8765MM
Internal Height1980MM
Overall Height3150MM
Internal Width2250MM
External Width2480MM
- Chassis
Supa Gal chassis - Drawbar
1900mm extended drawbar - 6 in drawbar and 6in main rail
- Suspension
Cruisemaster Independent XT offroad suspension (3700kg rating) - Coupling
Cruisemaster D035 Coupling - Breaksafe
Breakaway switch - Safety Chains
Safety chains - Handbrake
- Jockey Wheel
Jockey wheel - Gas Regulator
Gas compliance certificate - Electrical compliance certificate
- Brake
12in electric brakes with breakaway system - Frame
Robust aluminum box frame - Air Conditioner
Dometic Freshjet 3500w Air Conditioner - Kitchen External
1 x slide out Kitchen with built in sink, two burner stove, slide out table and cutlery drawer - Awning
Aussie Traveller 18ft awning - Solar
2 x 250 watt Exotronic solar panels - Water Tanks
2 x 95 litre water tanks - Toolbox with Jerry Can holders (size
1450mm x 550mm x 500mm no slideouts) - Windows Fly Screens
Rear Flyscreen - Charcoal marine carpet on rear door
- Tunnel Boot
1 x full length tunnel boot - Front drawbar tap
- City Water Bypass System
- External Shower
Hot & Cold outdoor shower - Gas Bottle
2 x 9kg gas bottles - Awning Lights
2 x Rear and 2 x side awning lights - Picnic Table
1 x external picnic table - Checker Plate
Checker plate to lower panels - Rims Wheels Tyres
265 x 75 x 16 offroad tyres - Drop Legs
4 x adjustable stabiliser legs - 12v rear door winch
- Rear door overhang wing with roof trims
- Decals
Premium graphics kit

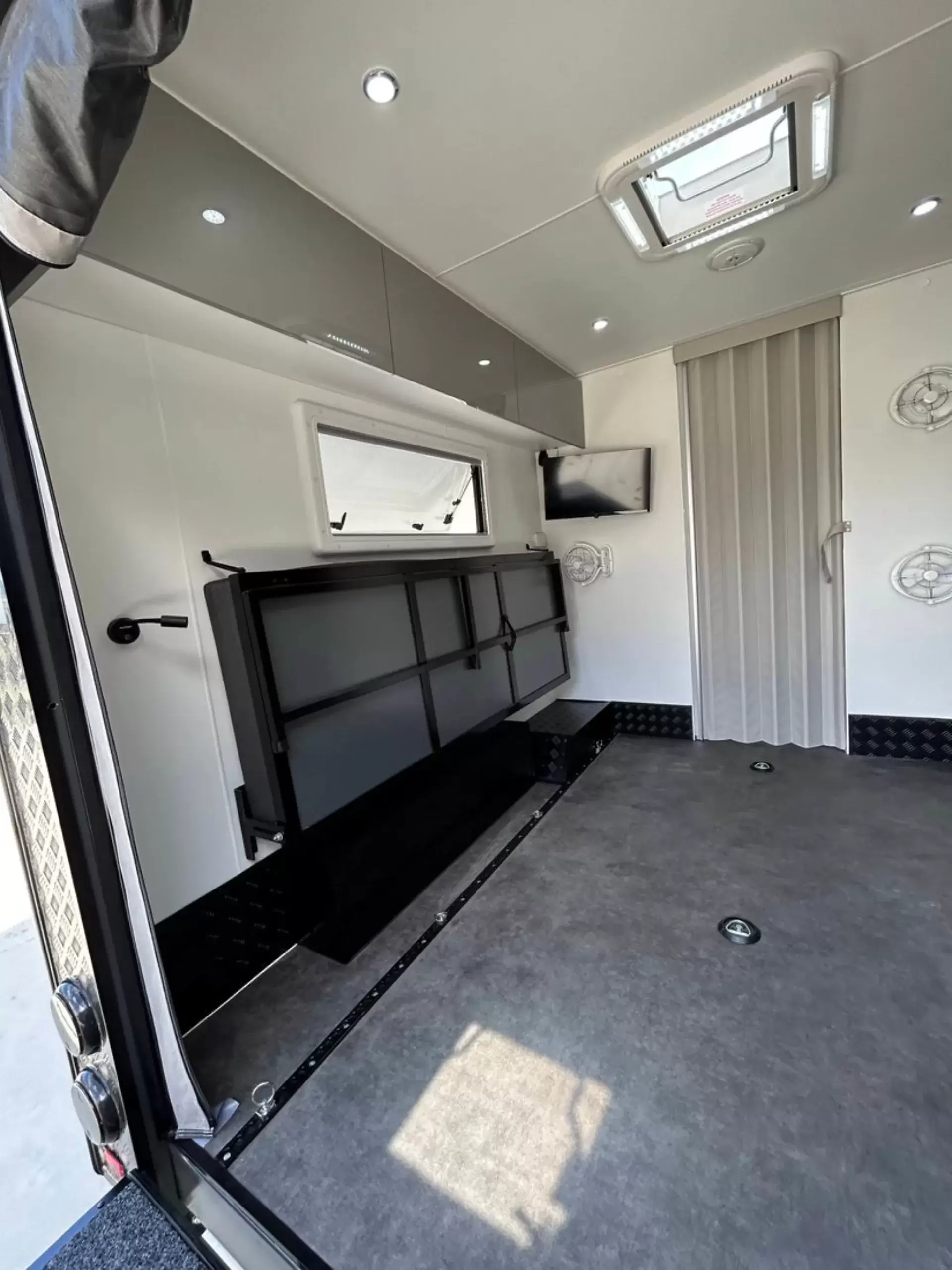

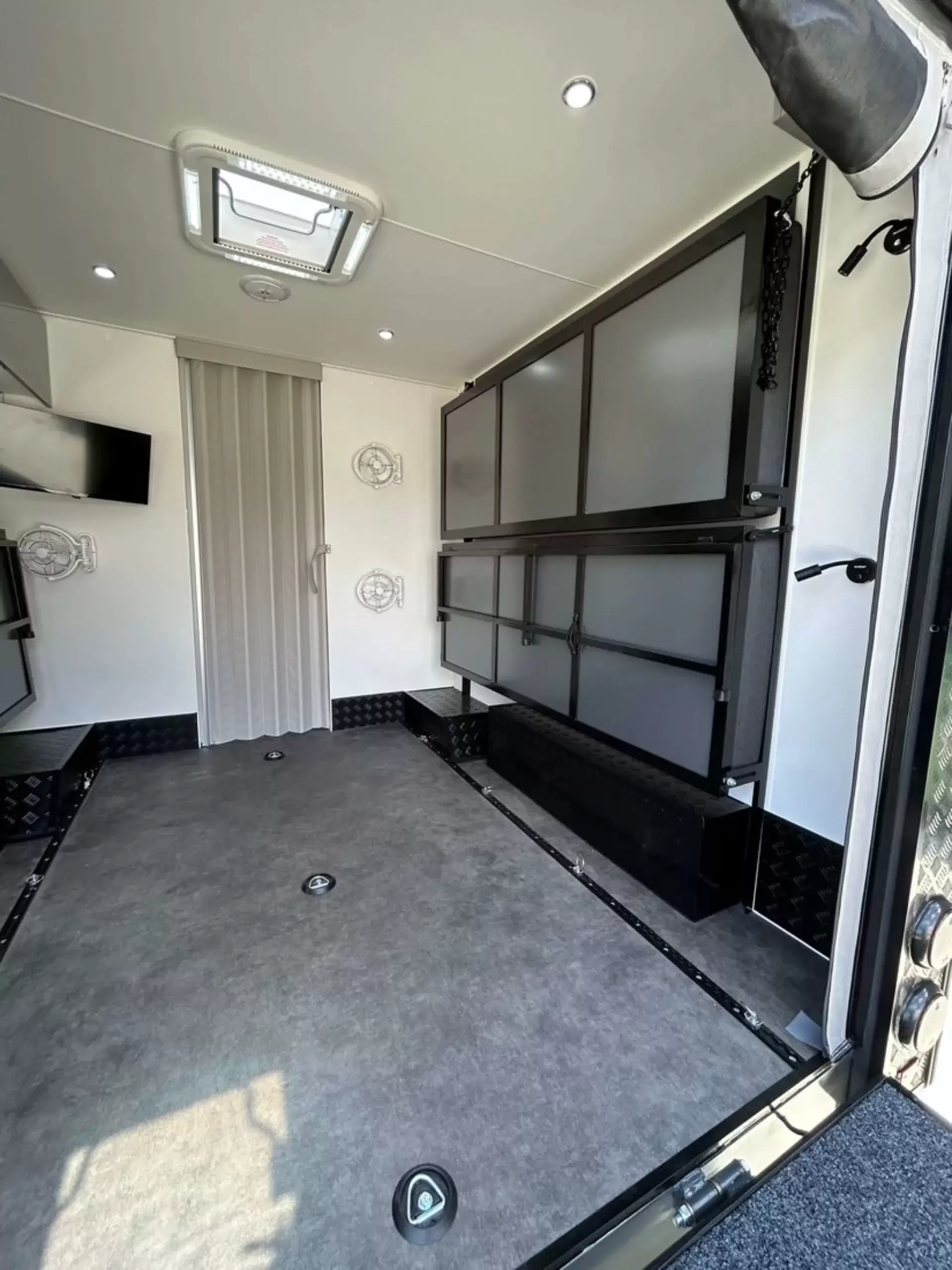

- Rear Garage:

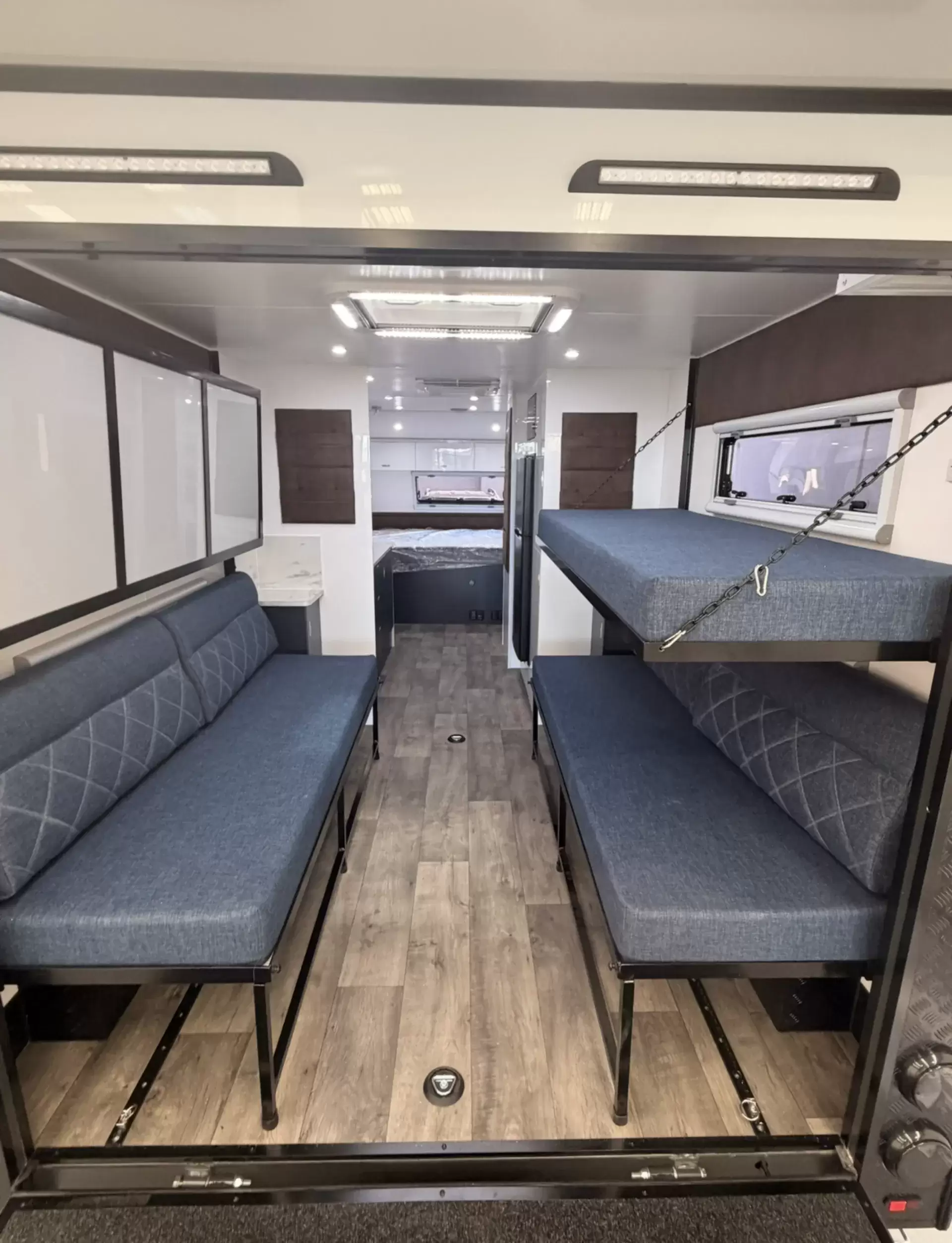

Rear garage measuring 1850mm x2350mm with beds/couch - Main Bed

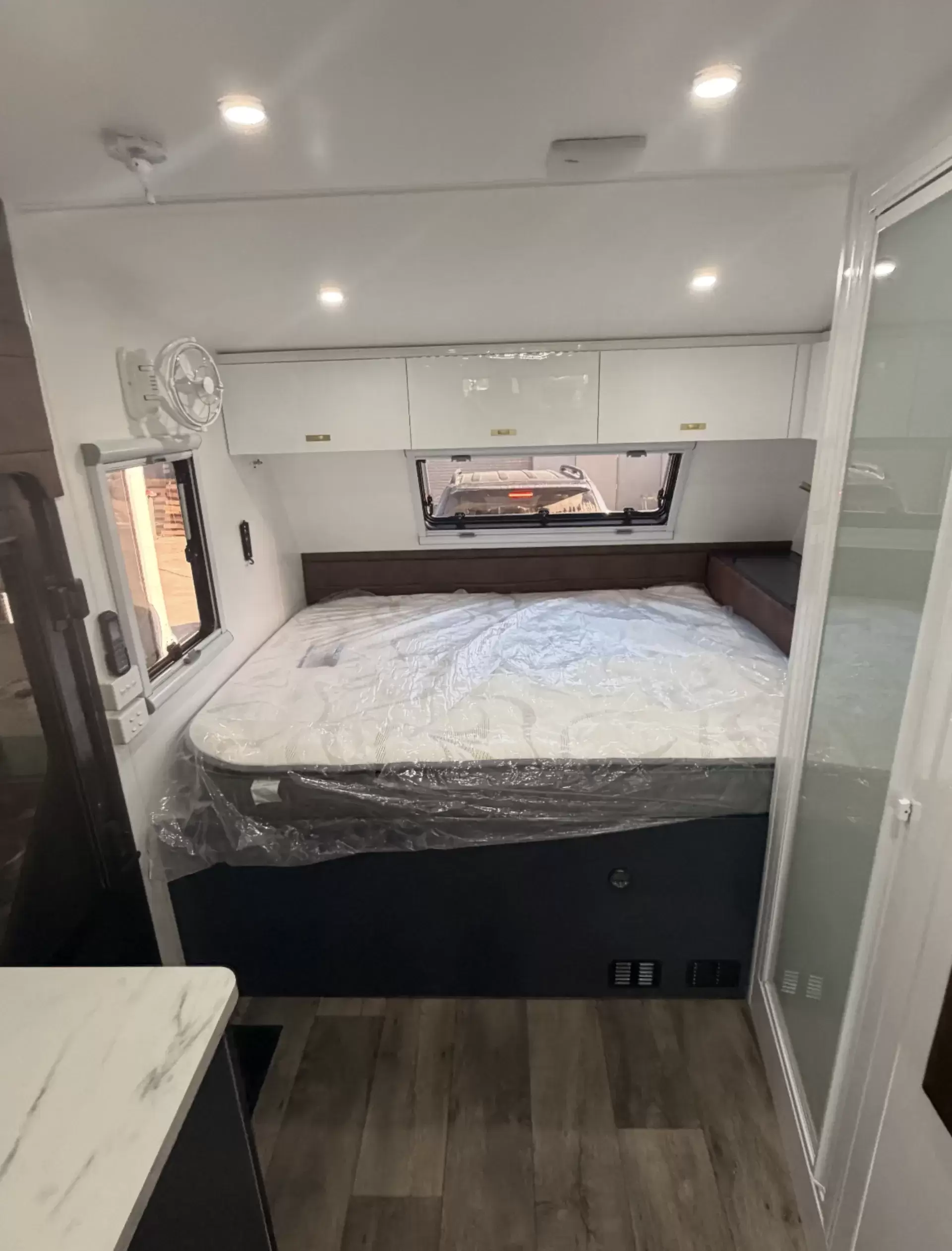

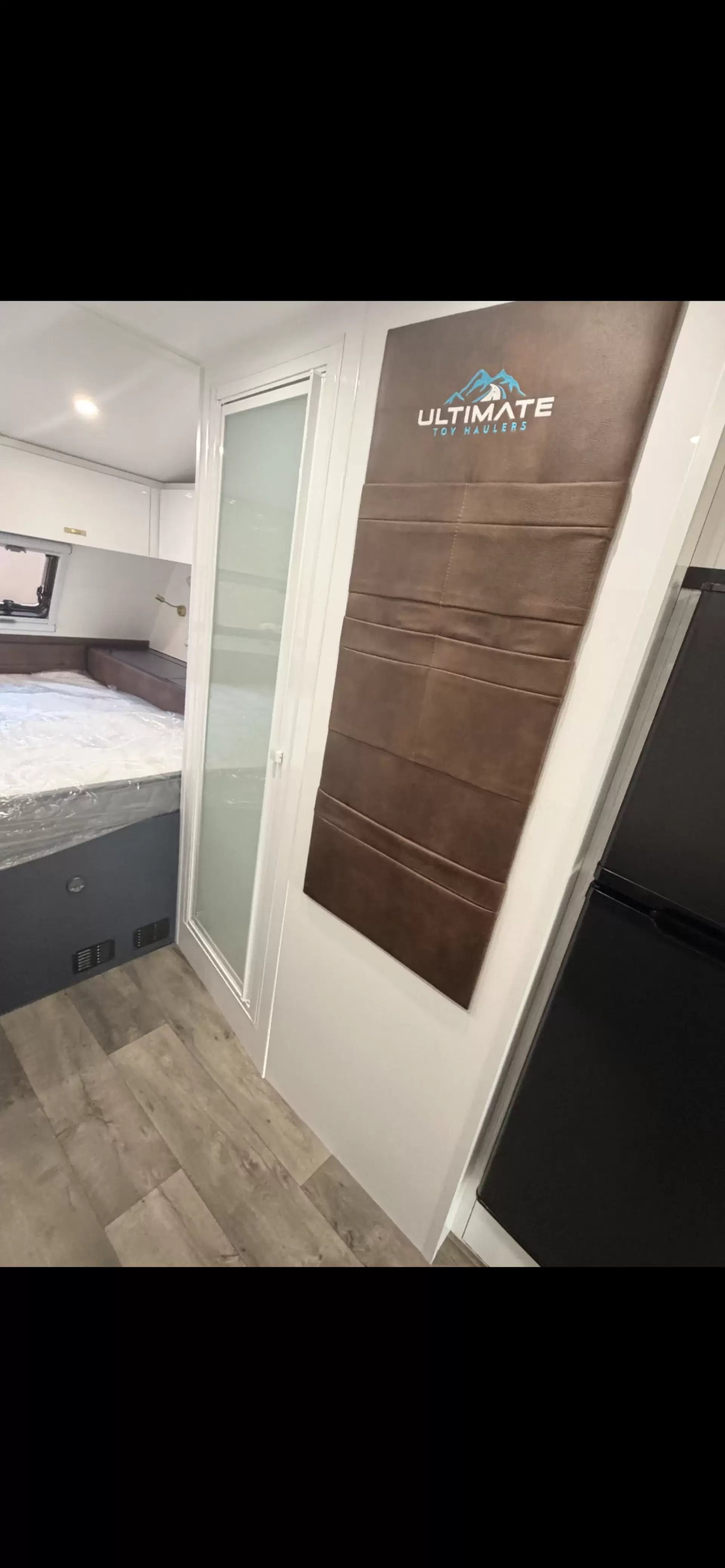

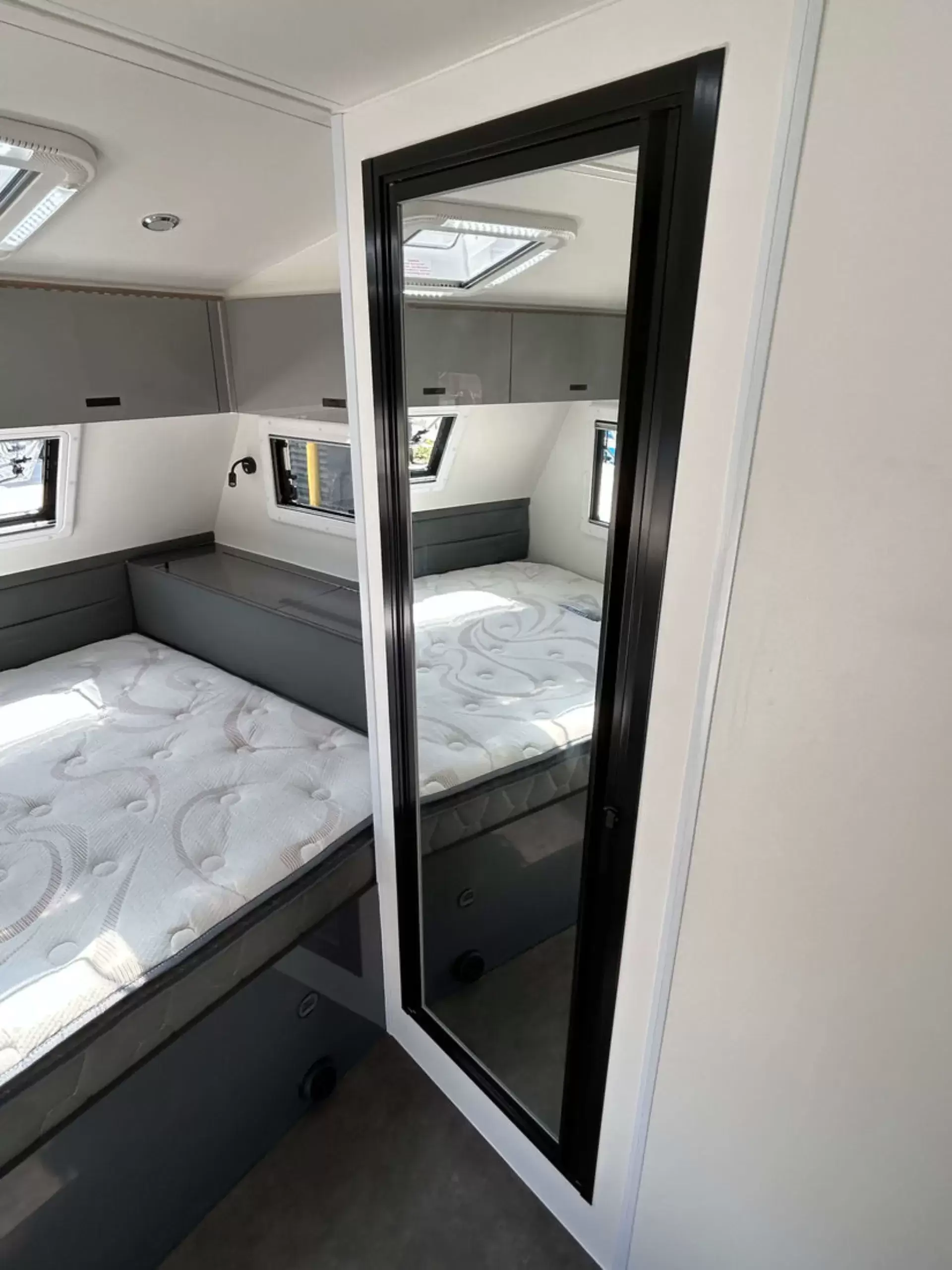

1 x pocket spring Queen sized bed with storage compartment and storage pocket - B ed Converter

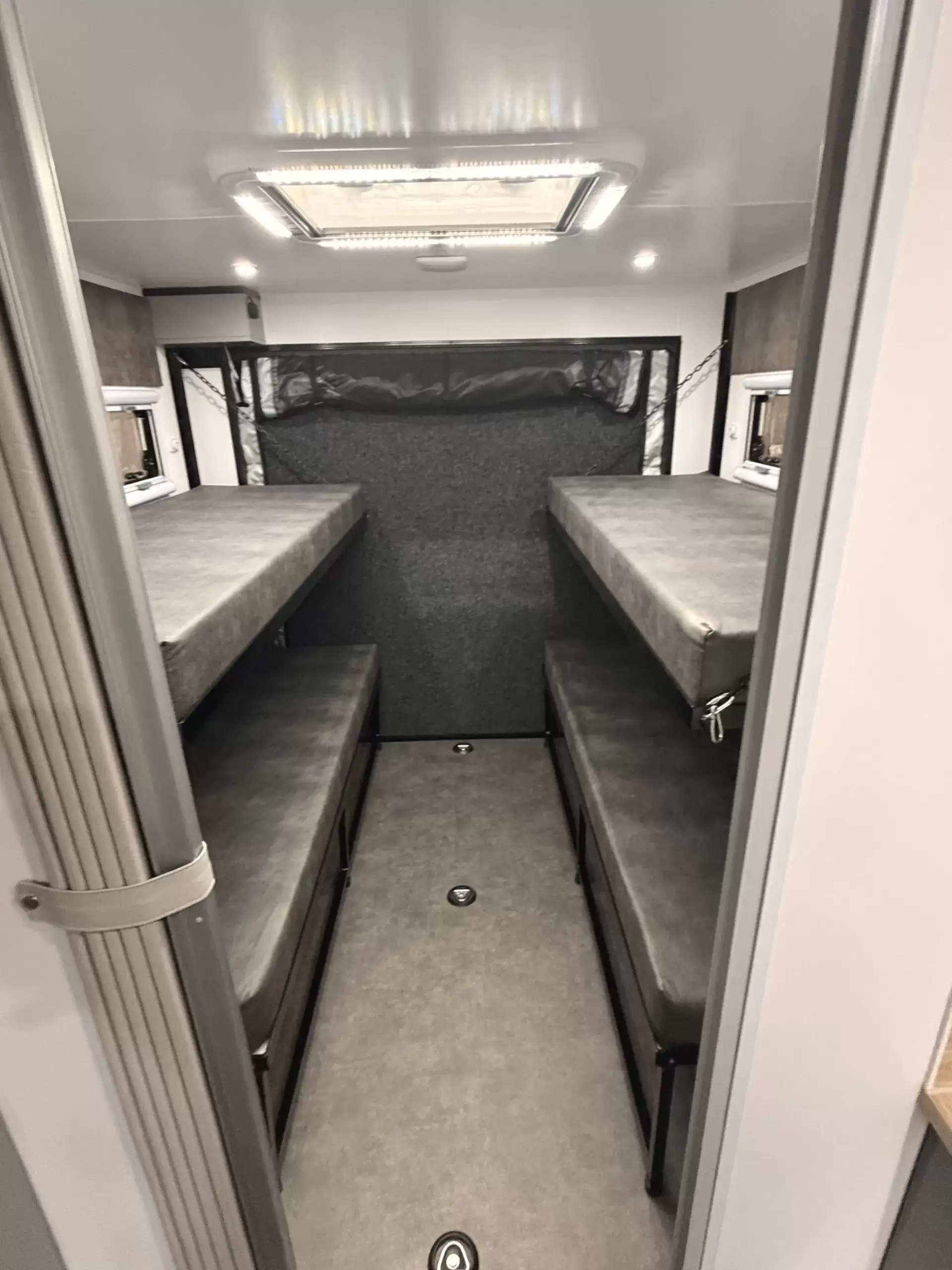

4 fold up beds/ dining area to rear 1900mm x 750mm - Mattress
150mm thick mattresses on rear beds - Separate Rear Bedroom/Garage

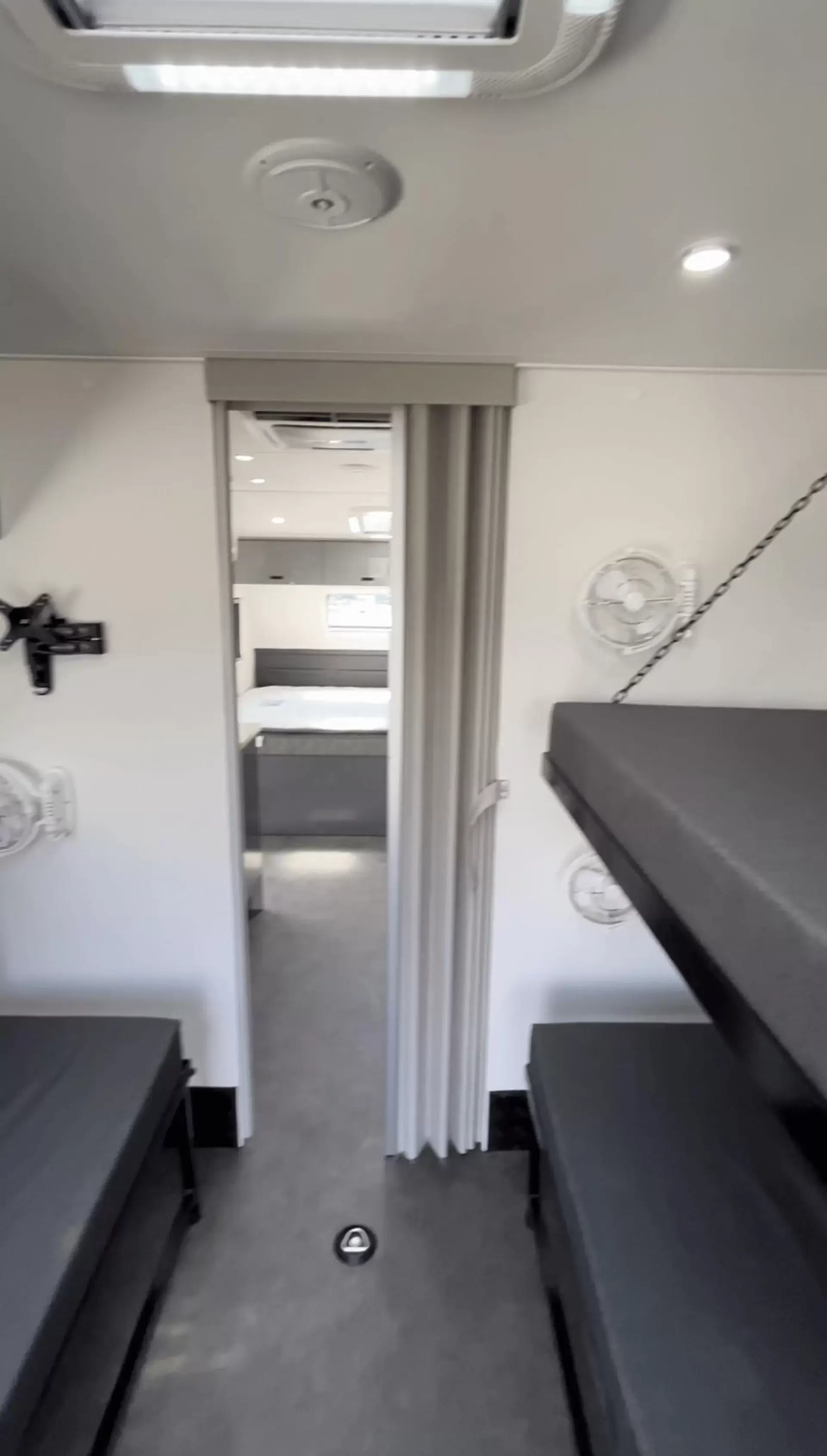

Separate rear bedroom/garage with Concertina door divider (2350mm length x 1850mm wide) - Hot Water System
Fogatti instant gas hot water - Fridge

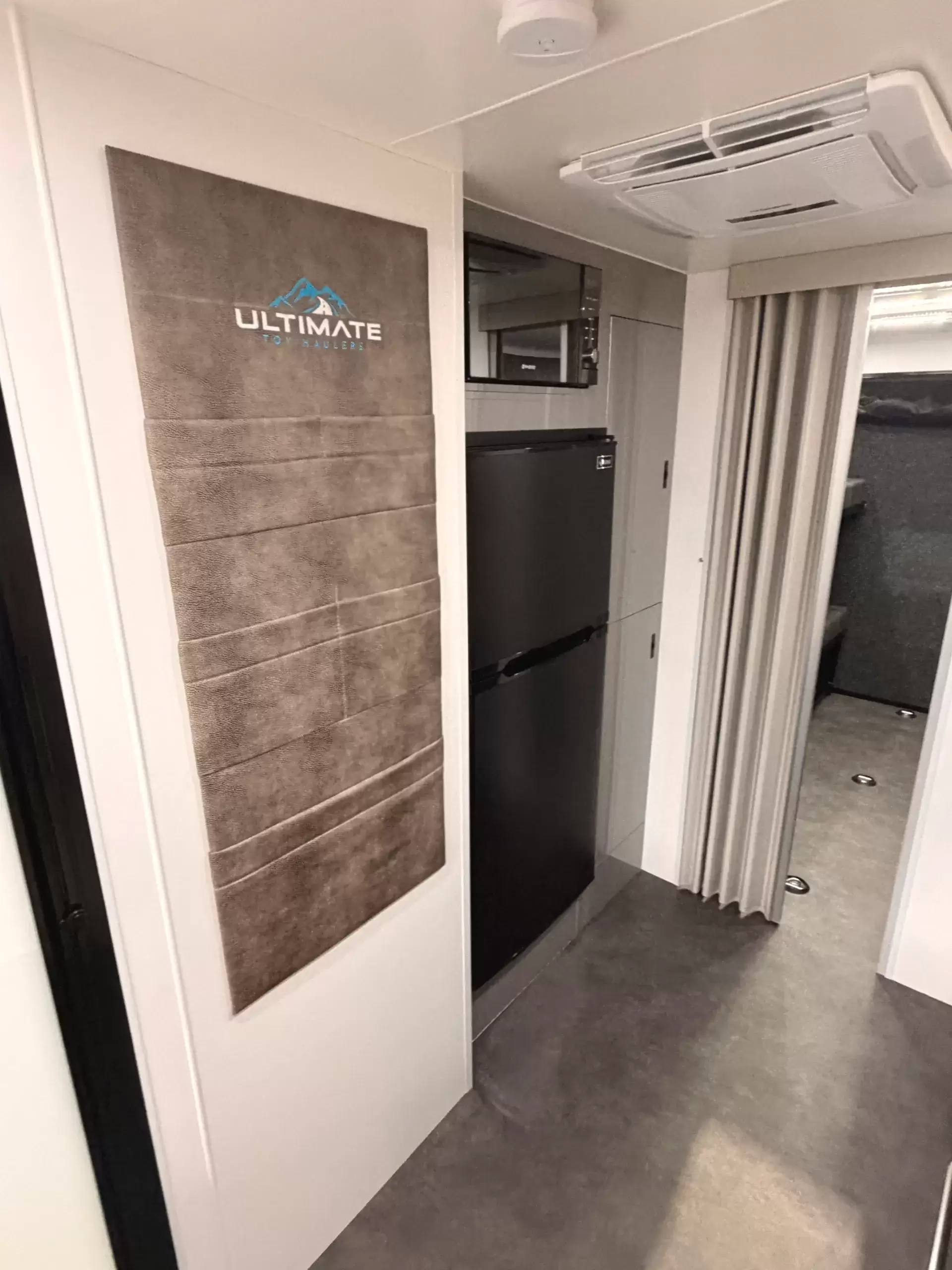

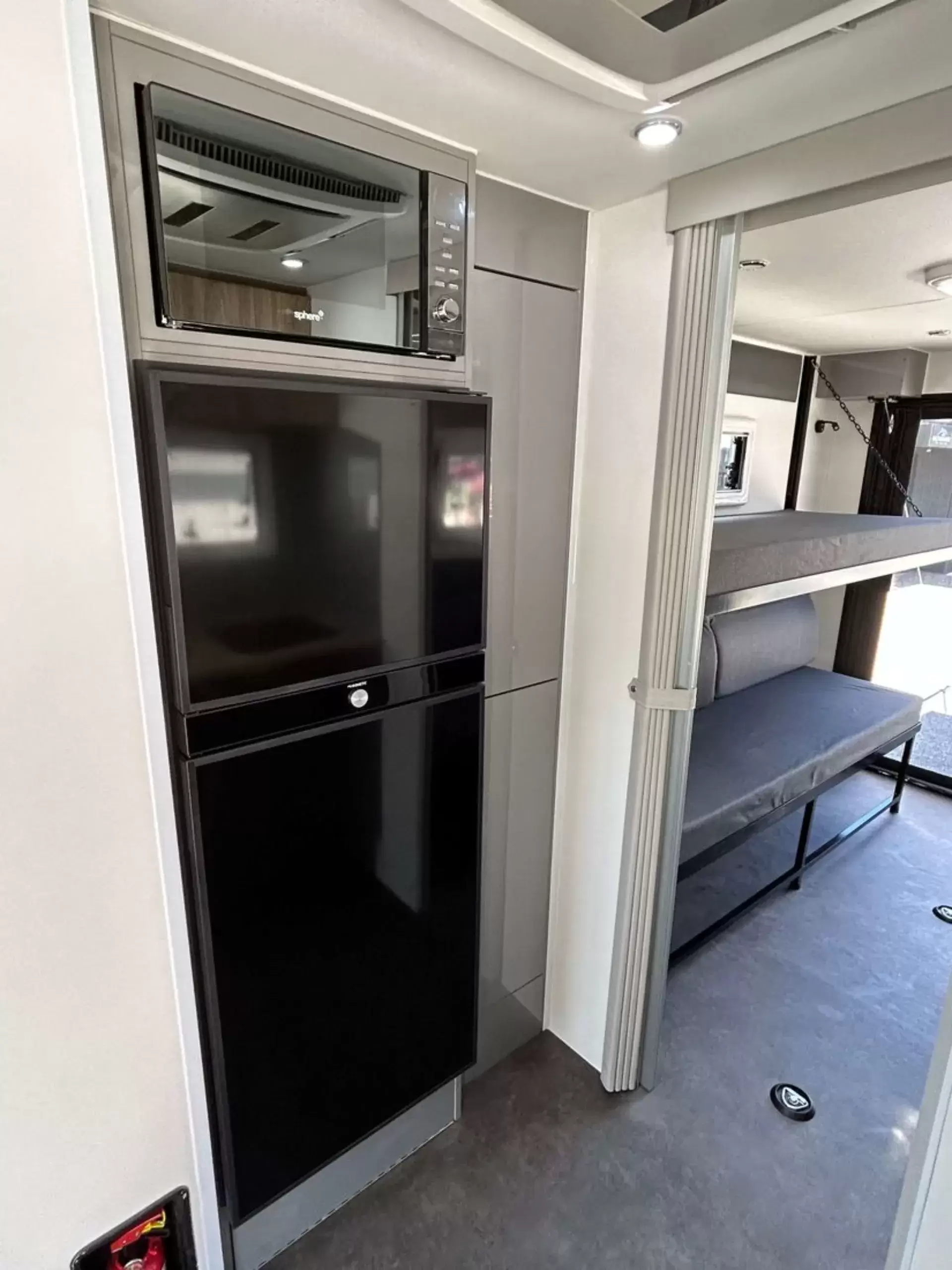

12v 190 litre Bushmans compressor fridge - Roof Hatch
2 x opening roof hatches with blinds/ flyscreen and LED lights - Shower and Toilet

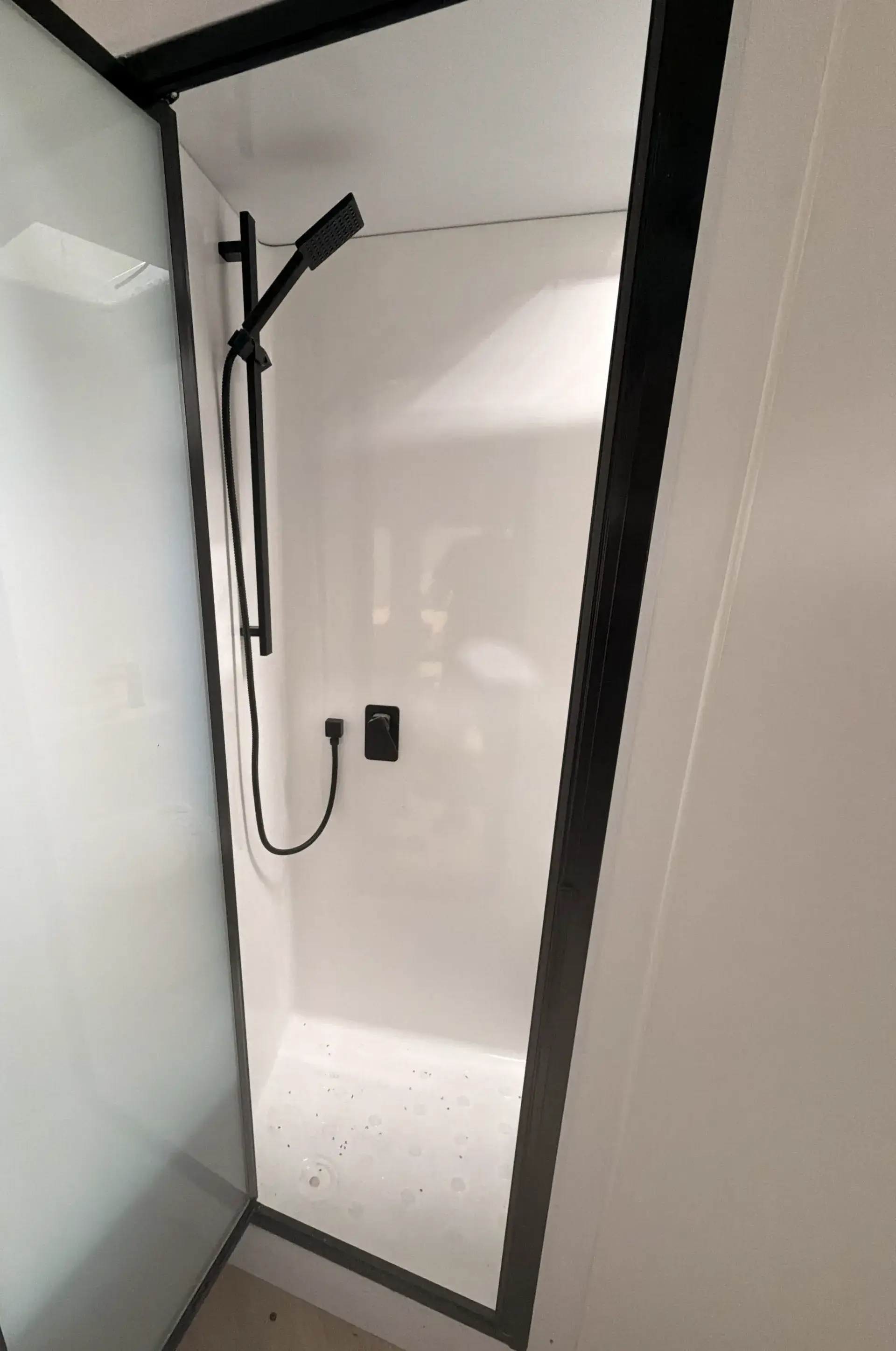

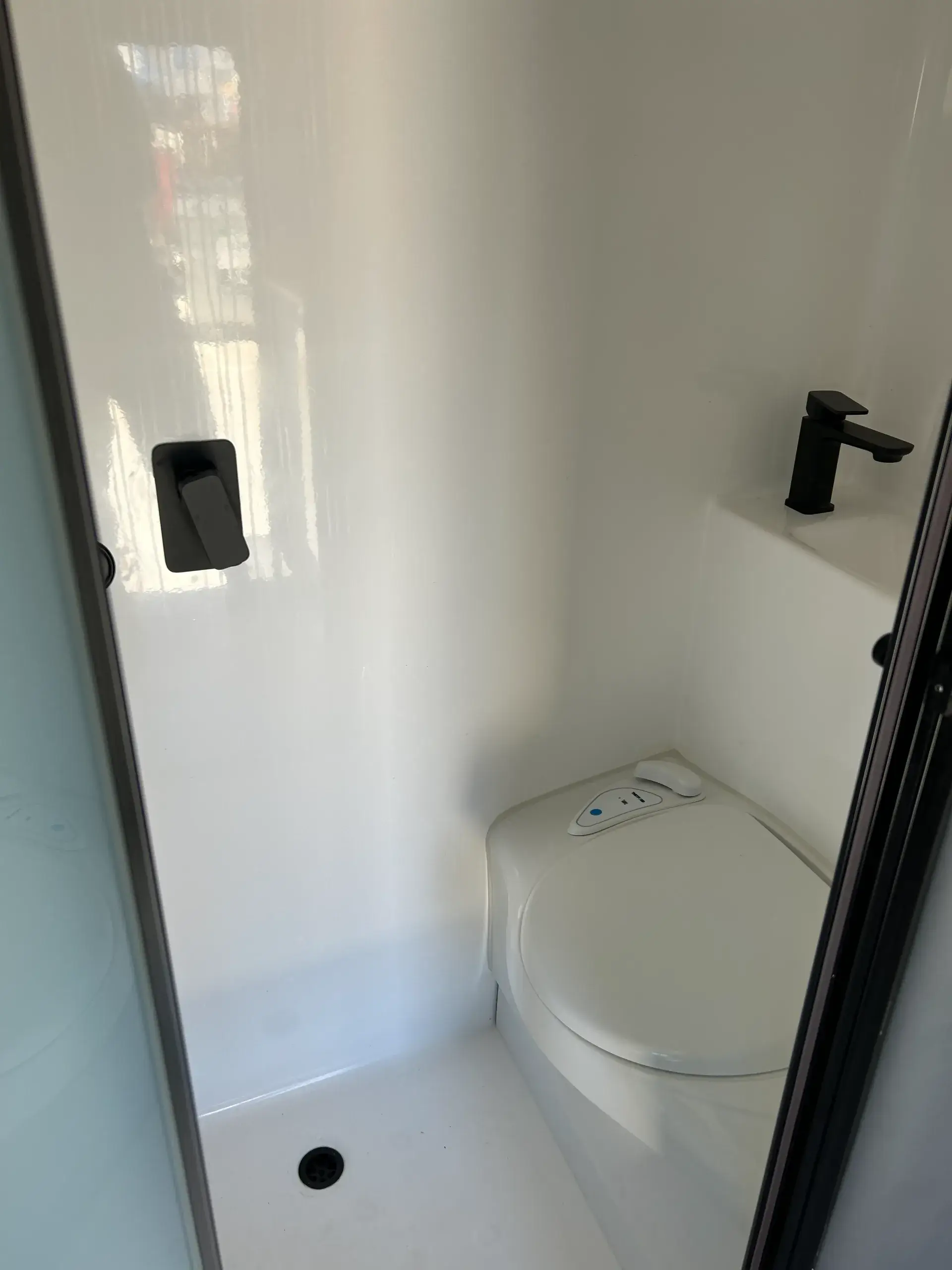

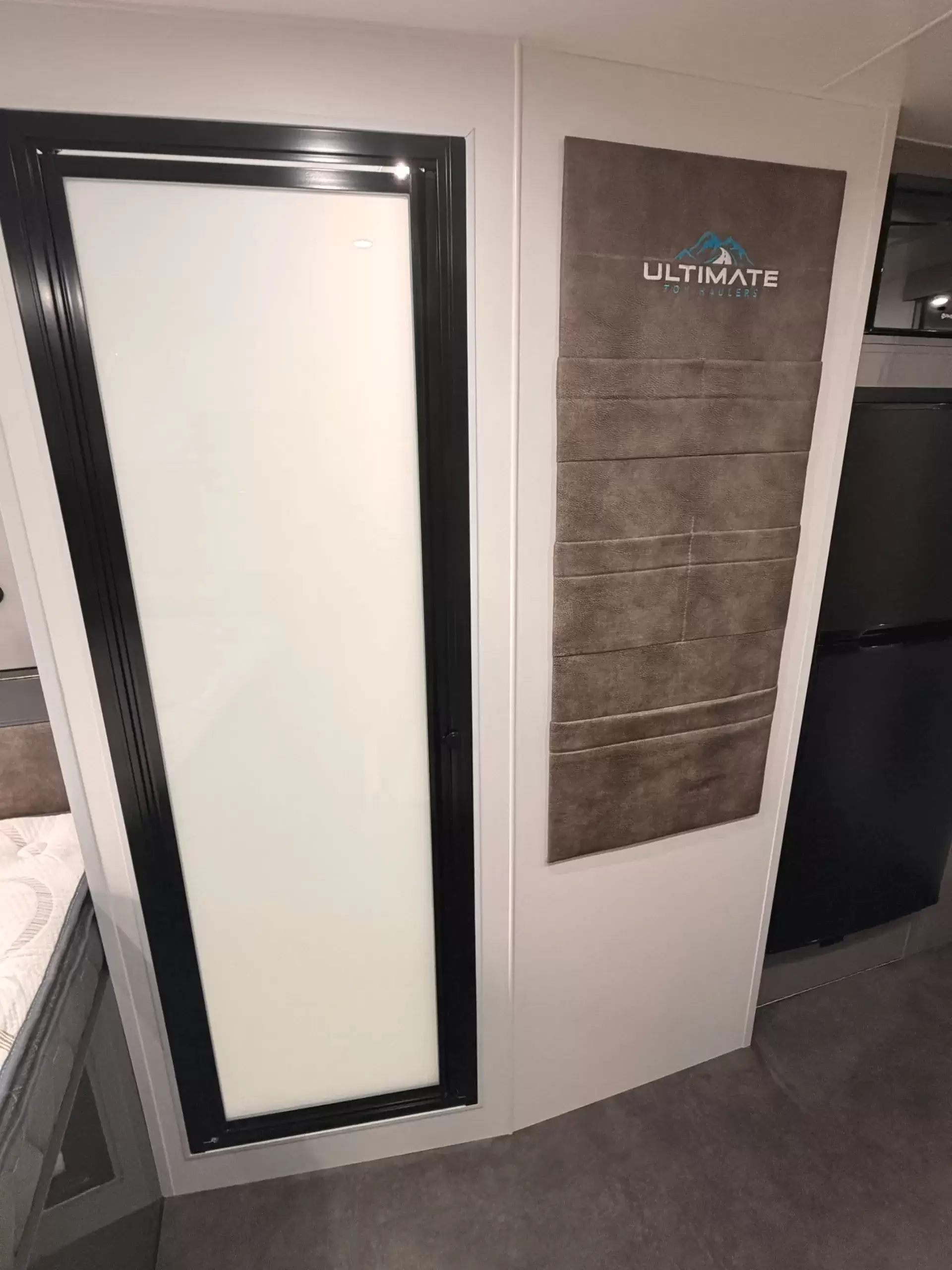

Moulded fiberglass shower unit with Thetford Cassette toilet and basin - Shower Door
‘Black Pack’ Kitchen and shower accessories and shower door - Windows
5 x Aussie Traveller Eurovision (slim line look) double glazed windows with flyscreens and blinds on all internal windows and hatches - Tv

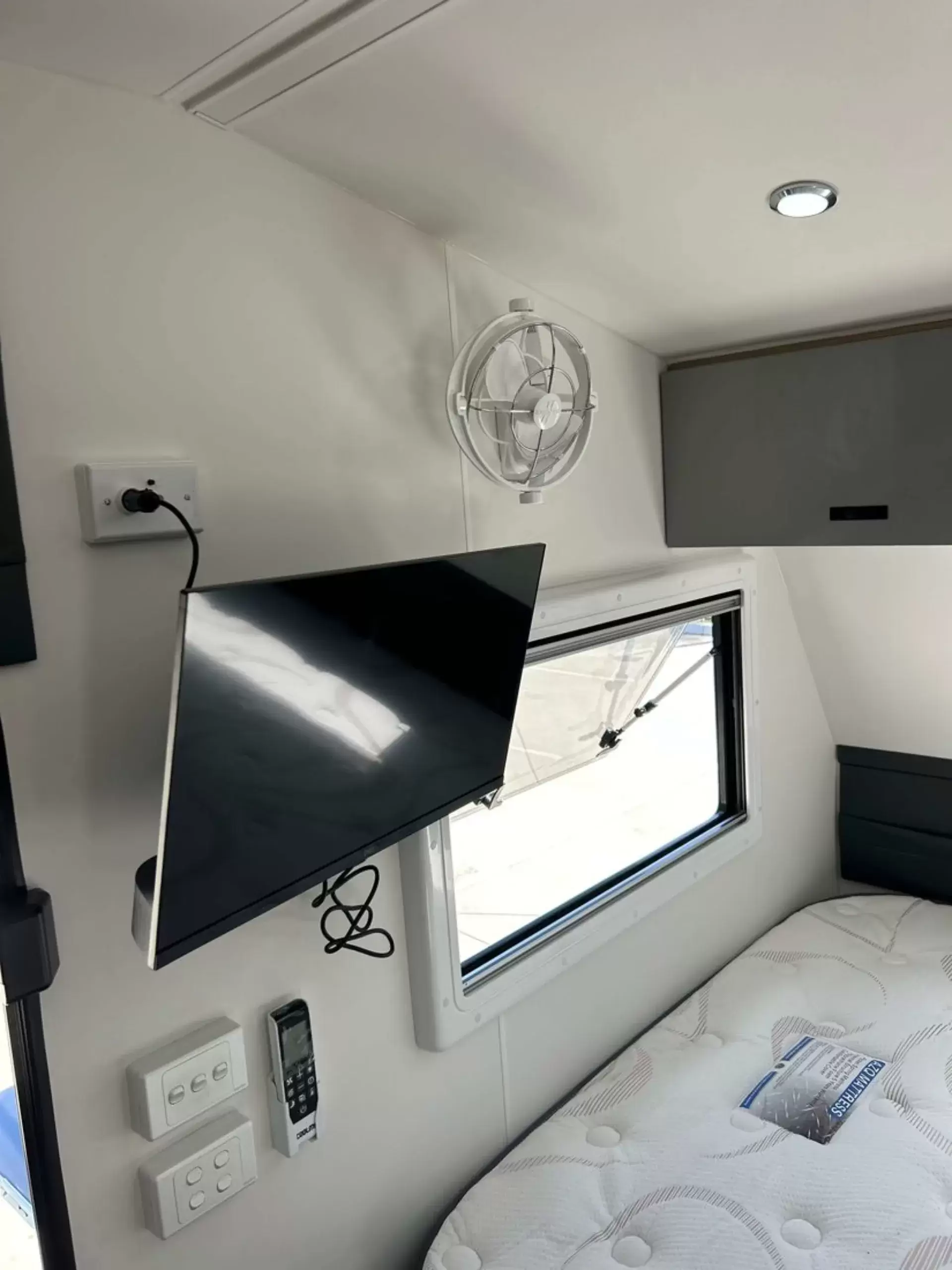

1 x TV mount and 12v 24in digital TV - Internal Speakers
2 x internal and 2 x external speakers with Bluetooth head unit - Cabinets
Lightweight premium cabinetry- Premium NX decor - Cupboards Storage
Overhead Cupboards above Queen Bed - Piano Hinges
Piano hinges on all overheads with gas struts - Soft Close Drawers
Soft close drawers/doors - Cabinets Overhead
Locks on all cupboard doors and overheads - Kitchen Internal

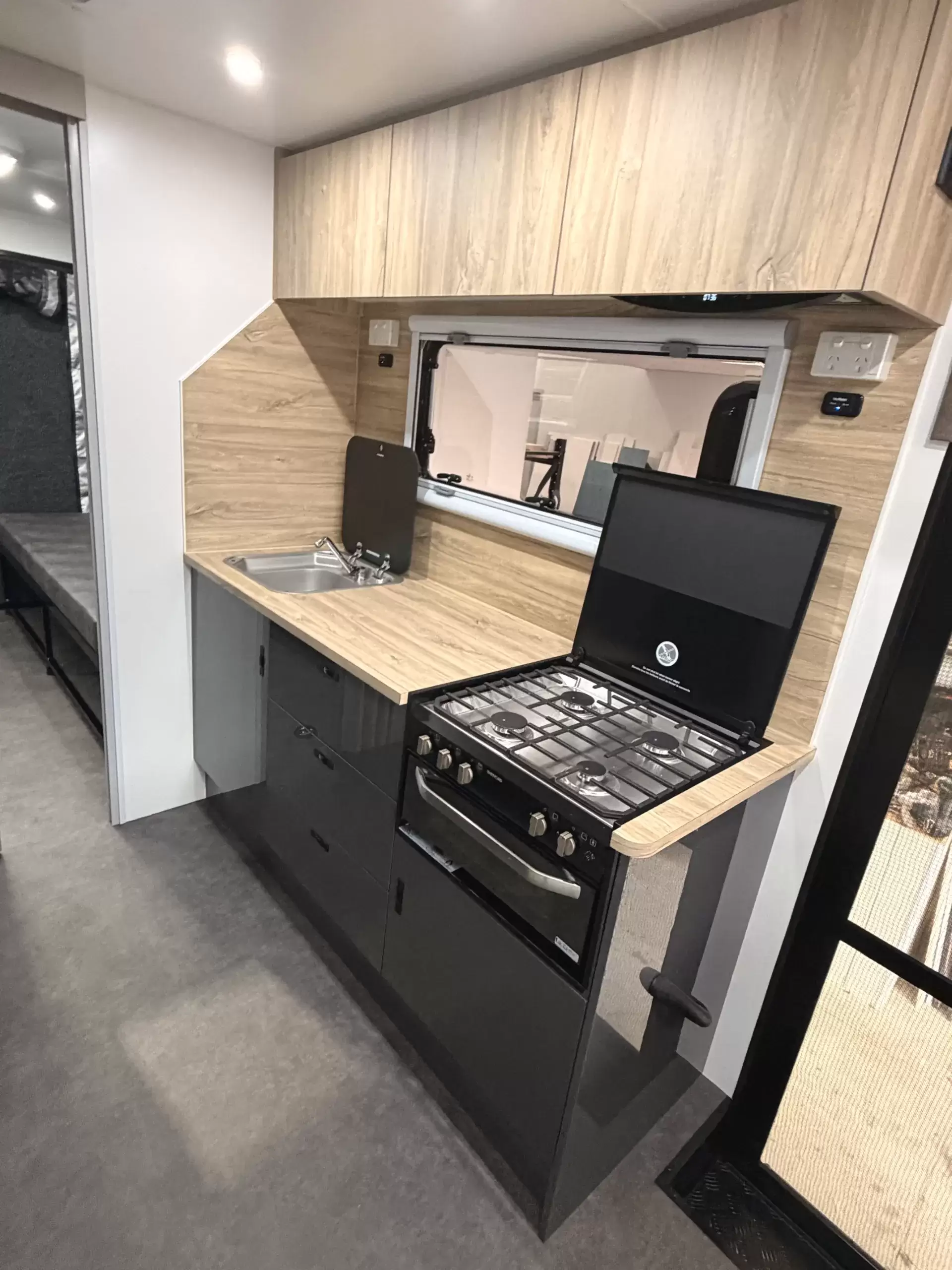

Internal Kitchen with overhead cabinets including Thetford Mini grill, sink and mixer tap, overhead Rangehood, splashback, lockable drawers and doors - Pull Out Pantry
Double pantry - Battery Monitor
Battery monitor and water gauges - Water Tank Gauge
Digital water tank gauges - 2 x adjustable tie down tracks
- 1x tie down point
- Entry Security Door

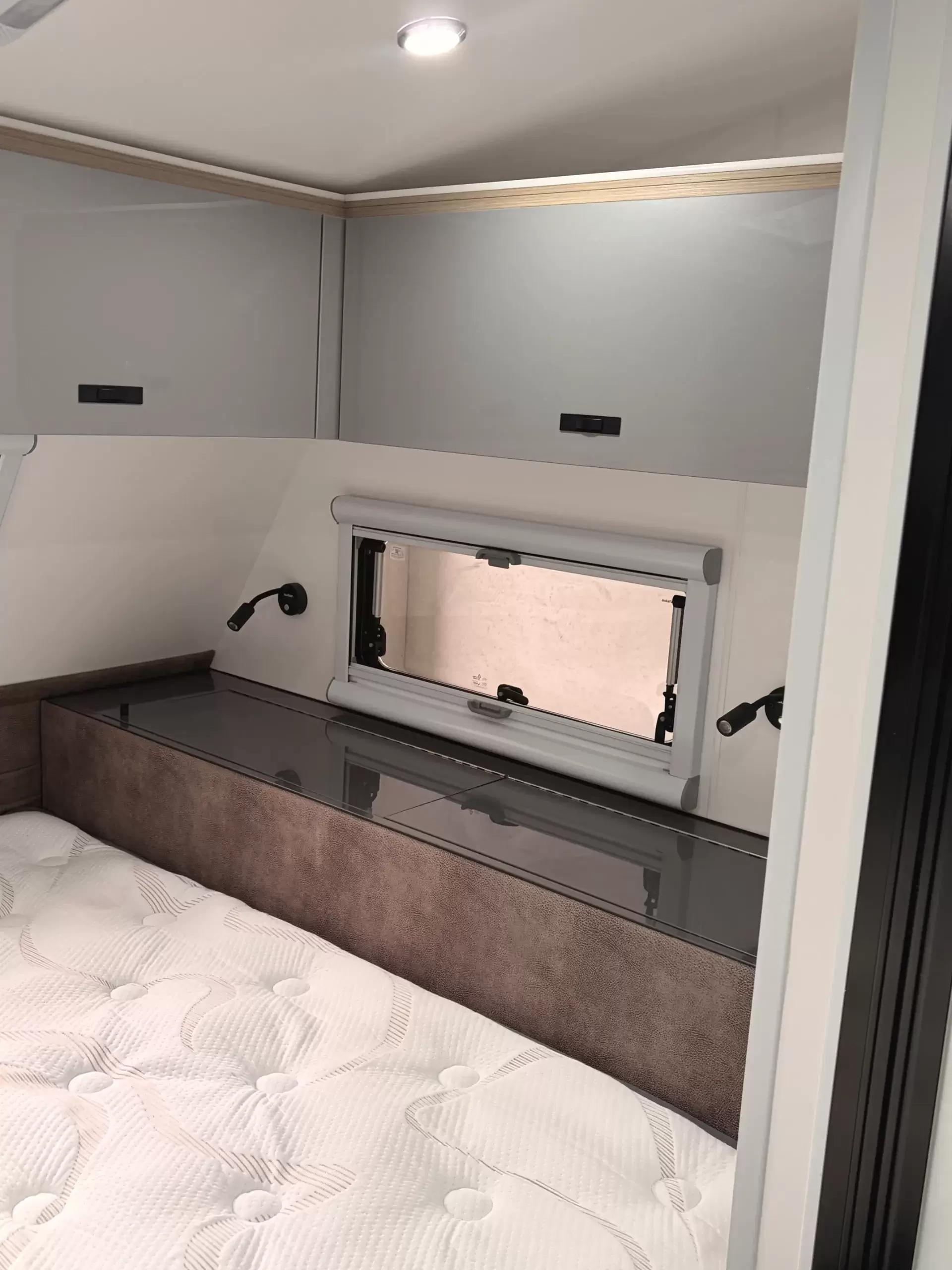

Triple lock entrance/ security door with flyscreen and blind - Reading Lights
2 x reading lights with USB outlet - Usb Points
5 x USB outlets - 12v Rear door winch
- Insulation
XPS foam insulation - Microwave
1 x 25 Litre Microwave
- Battery
200 amp Exotronic lithium battery - Solar Panel
2 x 250 watt Exotronic solar panel - Inverter
Victron 12v 1000w Inverter - Battery Charger
Victron DC-DC 50amp charger - AC Charger
Victron AC 30amp charger - MPPT Charger
Victron 50amp MPPT charger - 1 x 300amp Victron Shunt
- Internal Lights
8 x LED internal downlights - Fans
1 x Sirocco fan in bedroom - Power Points Internal
3 x internal 240 volt power point - 1 x 15 amp shore power point (external)
- Switches Electrical
240v safety switches - Water Pump
12v water pump switch - Fuse Block
1 x 12v fuse block - System Monitor Screen
1 x digital hot water monitor - 240v External Points
1 x external 240 volt power point - Solar Safety Fuses
2 x 12v solar safety fuses
Internal Colours
- CabinetryPremium NX Décor
- BenchtopPremium NX Décor
- UpholsteryPremium Warwick fabrics
- Mattress FabricPremium Warwick fabrics
- Couch Back restDiamond pattern to lower cushion
- FlooringPremium Commercial grade vinyl
